Hello I am having issue with my lab assignment using MATLAB and
i ran into a problem where i am not able to get it to work. please
help. I am new to coding as well explanation would help out dearly
thank you =)

Hello I Am Having Issue With My Lab Assignment Using Matlab And I Ran Into A Problem Where I Am Not Able To Get It To Wo 1 (55.12 KiB) Viewed 41 times

Hello I Am Having Issue With My Lab Assignment Using Matlab And I Ran Into A Problem Where I Am Not Able To Get It To Wo 2 (7.45 KiB) Viewed 41 times

r=0.901.10;
r1=0.985
r2=1.015
rp=1
wp=35.6047
w1=r1/rp*wp;
w2=r2/rp*wp;
zeta=alpha/1+(1-(2*alpha^2))^(1/2);
alpha=(w2^2-w1^2)/(w2^2+w1^2);
syms r
M= (r^2)/((1-r^2)^2+ (2*zeta*r)^2)^(1/2)
fplot(M,[0.90 1.10])
title('graph of M v/s r')
xlabel('r')
ylabel('M')
r=0.901.10
syms r
phi= 2*atan(2*zeta*r/(((1-r^2)^2+(2*zeta*r)^2)^(1/2)
+(1-r^2)))
fplot(phi,[0.90 1.10])
title('graph of phi v/s r')
xlabel('r')
ylabel('phi')
1- 2 - 3- 4 - 5- 6- 7 r=0.901.10; r1=0.985 12=1.015 rp=1 wp-35.6047 wl=rl/rp*wp; w2=12/rp*wp; 8 zeta-alpha/1+ (1-(2*alpha^2))^(1/2); 9 - alpha= (w2^2-w1^2)/(w2^2+w1^2); 10 syms r 11 M= (r^2)/((1-r^2)^2+ (2*zeta*r)^2)^(1/2) fplot (M, [0.90 1.10]) 12 13 title ('graph of M v/s r') 14 xlabel('r') ylabel('M') 15 16- r=0.901.10 syms r phi= 2*atan (2*zeta*r/(((1-r^2)^2+(2*zeta*r) ^2)^(1/2) +(1-r^2))) fplot(phi,[0.90 1.10]) title ('graph of phi v/s r') xlabel('r') ylabel('phi') HO co co Jo in i ш |||||| 17 - 18 19 20 21 - 22 - 23 24 Workspace rp = wp= 35.6047 Error using alpha Too many output arguments. Error in Untitled (line 8) zeta-alpha/1+ (1-(2*alpha^2))^(1/2); fr Command Window

7. Utilize the relation below to construct a graph of M versus (with 0.90 ≤ ≤1.10): pi2 M = √(1-x²)²+(257)² 8. Utilize the relation below to construct a graph of versus (with 0.90 ≤ ≤1.10): p=2 tan-¹ 25r √√√(1-²)²+(25)² + (1-²),

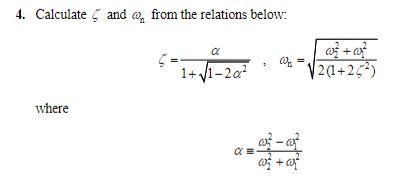

4. Calculate and from the relations below: a Op 1+√√1-2a² where 2-c0² co₂ + co² α=- co² + co² √2(1+25²)
