2 points The figure of the engine cycle on pressure -volume diagram is often called indicator diagram pressure force dia

[answerhappygod]

2 Points The Figure Of The Engine Cycle On Pressure Volume Diagram Is Often Called Indicator Diagram Pressure Force Dia 1 (27.54 KiB) Viewed 29 times

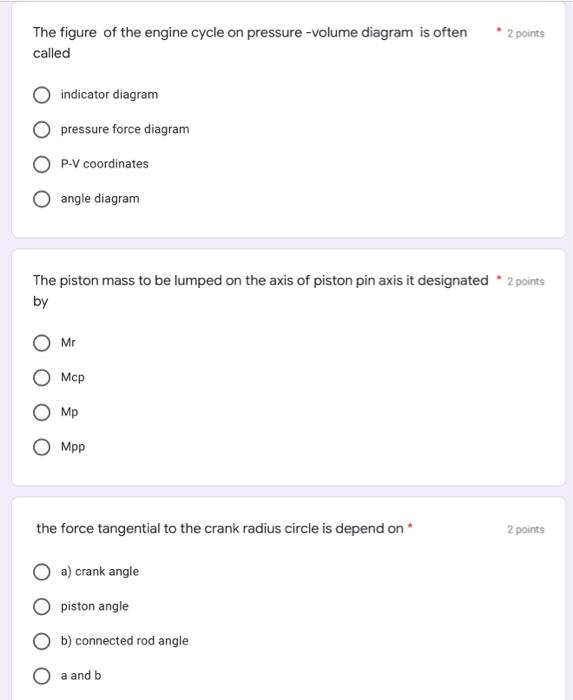

2 points The figure of the engine cycle on pressure -volume diagram is often called indicator diagram pressure force diagram P-V coordinates angle diagram The piston mass to be lumped on the axis of piston pin axis it designated * 2 points by Mr Mcp Mp Mpp 2 points the force tangential to the crank radius circle is depend on * a) crank angle piston angle b) connected rod angle a and b
