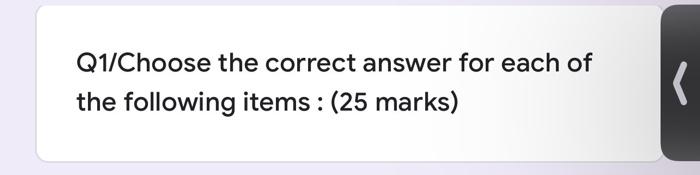

Q1/Choose the correct answer for each of the following items: (25 marks) (

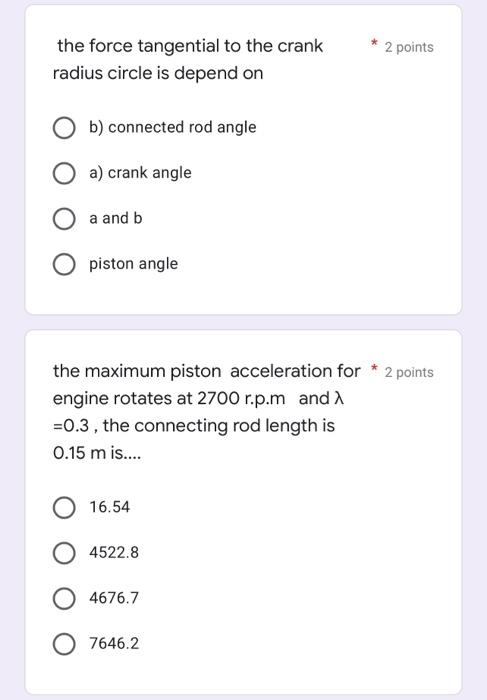

the force tangential to the crank 2 points radius circle is depend on b) connected rod angle a) crank angle a and b piston angle the maximum piston acceleration for * 2 points engine rotates at 2700 r.p.m and > =0.3, the connecting rod length is 0.15 m is.... 16.54 4522.8 4676.7 7646.2
