i. For the circuit of Figure 1.1: 50kΩ 1 μF ME Vj (1) 200 Κ Ω 1 μF Figure 1.1 a. Derive the transfer function relating t

[answerhappygod]

1 (125.58 KiB) Viewed 24 times

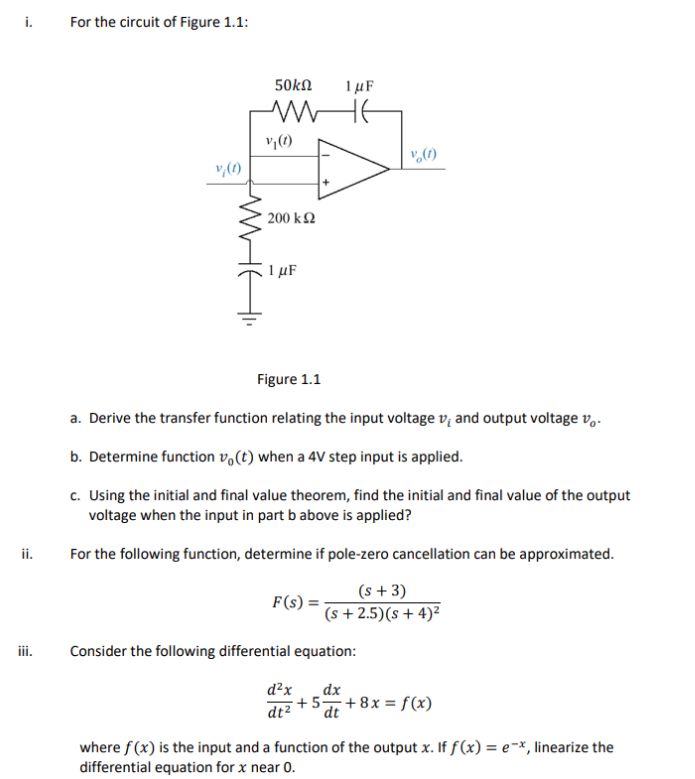

i. For the circuit of Figure 1.1: 50kΩ 1 μF ME Vj (1) 200 Κ Ω 1 μF Figure 1.1 a. Derive the transfer function relating the input voltage v; and output voltage vo b. Determine function vo(t) when a 4V step input is applied. c. Using the initial and final value theorem, find the initial and final value of the output voltage when the input in part b above is applied? ii. For the following function, determine if pole-zero cancellation can be approximated. F(s) = (s + 3) (s +2.5) (s+4)² Consider the following differential equation: d²x dx dt² +5+8x = f(x) where f(x) is the input and a function of the output x. If f(x) = e-x, linearize the differential equation for x near 0. v;(1) ME v (1)
