3. An uncompensated control system with unity feedback has a plant transfer function: G(s) = K/ (s(s/2 + 1)(s/6 + 1)) We
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
3. An uncompensated control system with unity feedback has a plant transfer function: G(s) = K/ (s(s/2 + 1)(s/6 + 1)) We

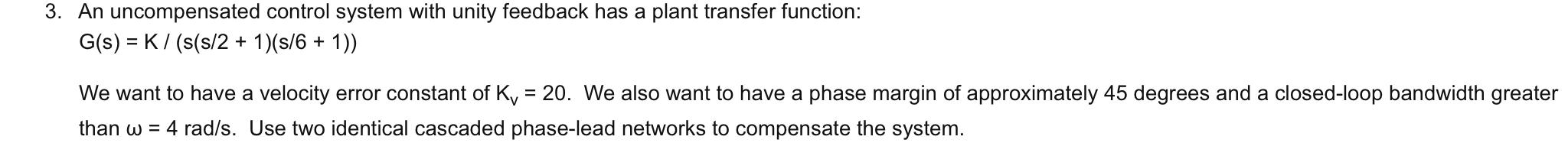

3. An uncompensated control system with unity feedback has a plant transfer function: G(s) = K/ (s(s/2 + 1)(s/6 + 1)) We want to have a velocity error constant of K = 20. We also want to have a phase margin of approximately 45 degrees and a closed-loop bandwidth greater than w = 4 rad/s. Use two identical cascaded phase-lead networks to compensate the system.
