B2 2 B2 4 A Coil Which Has 6 Resistance And 25 5 Mh Inductance Is Feeding From A 440 V 50 Hz Supply Calculate 1 (94.05 KiB) Viewed 77 times
what's the solution

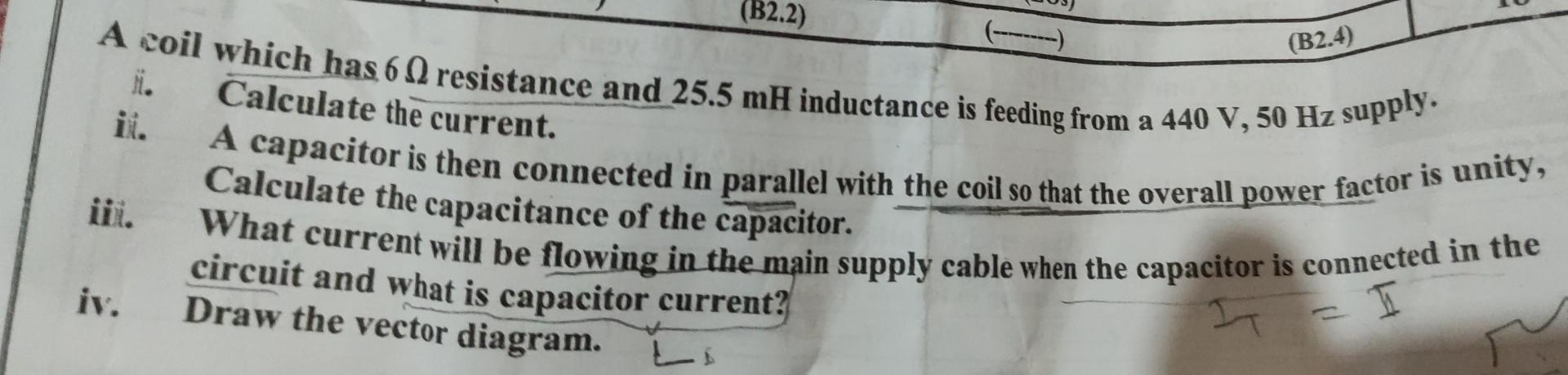

(B2.2) (-) (B2.4) A coil which has 6 resistance and 25.5 mH inductance is feeding from a 440 V, 50 Hz supply. Calculate the current. ii. A capacitor is then connected in parallel with the coil so that the overall power factor is unity, Calculate the capacitance of the capacitor. iii. What current will be flowing in the main supply cable when the capacitor is connected in the circuit and what is capacitor current? I n iv. Draw the vector diagram. Li
