3.2 Given a wedge-shaped stress element in the figures below and trigonometric identities, use equations of equilibrium

Post by answerhappygod »

3 2 Given A Wedge Shaped Stress Element In The Figures Below And Trigonometric Identities Use Equations Of Equilibrium 1
3 2 Given A Wedge Shaped Stress Element In The Figures Below And Trigonometric Identities Use Equations Of Equilibrium 1 (20.46 KiB) Viewed 12 times

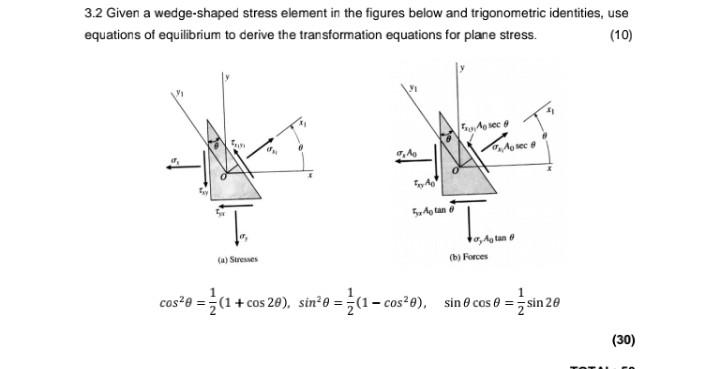

3.2 Given a wedge-shaped stress element in the figures below and trigonometric identities, use equations of equilibrium to derive the transformation equations for plane stress. (10) Ag sec9 A sec from σ, A A 5x tan Tamme (a) Stresses (b) Forces cos²0 =(1+cos 20), sin²0 =(1-cos²0), sin cos 0 = sin 20 (30)
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
