(b) Determine the angular velocity of Gear D and its direction as shown in the Figure Q4. (5 marks) CEAR D GLAR A GEAR C

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

(b) Determine the angular velocity of Gear D and its direction as shown in the Figure Q4. (5 marks) CEAR D GLAR A GEAR C

Post by answerhappygod »

B Determine The Angular Velocity Of Gear D And Its Direction As Shown In The Figure Q4 5 Marks Cear D Glar A Gear C 1
B Determine The Angular Velocity Of Gear D And Its Direction As Shown In The Figure Q4 5 Marks Cear D Glar A Gear C 1 (57.53 KiB) Viewed 26 times

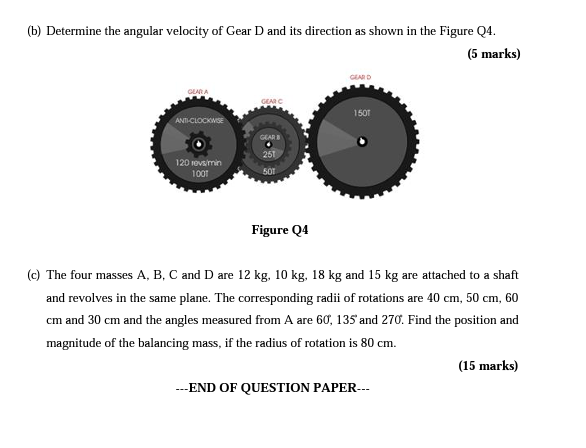

(b) Determine the angular velocity of Gear D and its direction as shown in the Figure Q4. (5 marks) CEAR D GLAR A GEAR C 150T ANTI-CLOCKWISE 120 revs/min 1001 501 Figure Q4 (c) The four masses A, B, C and D are 12 kg, 10 kg, 18 kg and 15 kg are attached to a shaft and revolves in the same plane. The corresponding radii of rotations are 40 cm, 50 cm, 60 cm and 30 cm and the angles measured from A are 60, 135 and 270. Find the position and magnitude of the balancing mass, if the radius of rotation is 80 cm. (15 marks) ---END OF QUESTION PAPER---
