3.2 Given a wedge-shaped stress element in the figures below and trigonometric identities, u equations of equilibrium to

Post by answerhappygod »

3 2 Given A Wedge Shaped Stress Element In The Figures Below And Trigonometric Identities U Equations Of Equilibrium To 1
3 2 Given A Wedge Shaped Stress Element In The Figures Below And Trigonometric Identities U Equations Of Equilibrium To 1 (48.09 KiB) Viewed 26 times

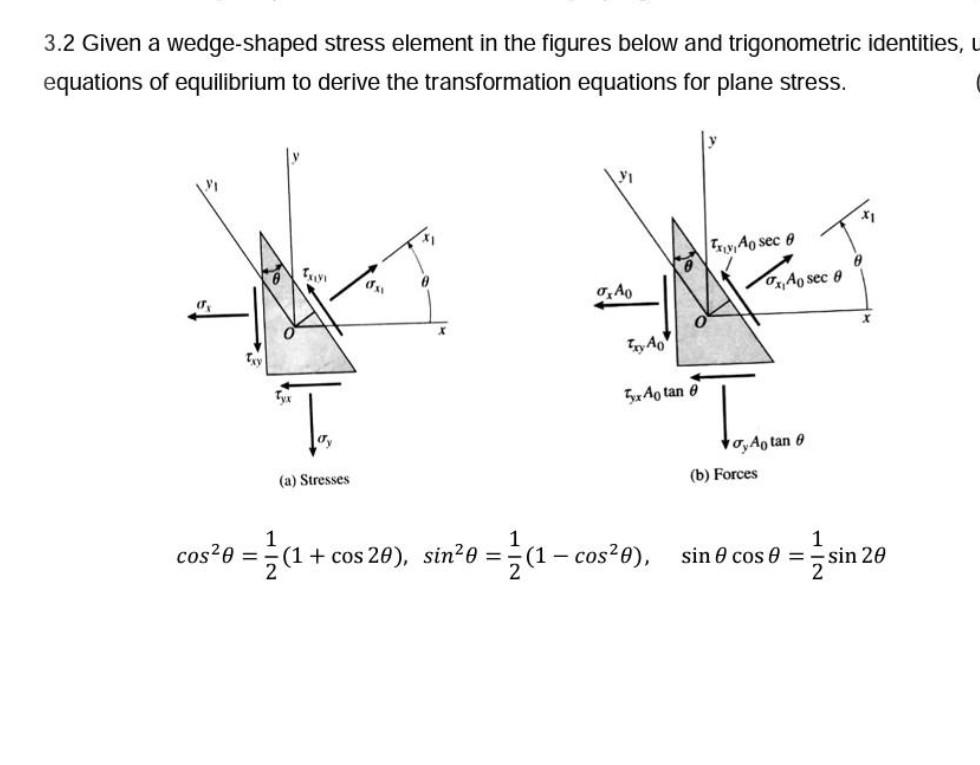

3.2 Given a wedge-shaped stress element in the figures below and trigonometric identities, u equations of equilibrium to derive the transformation equations for plane stress. XI "₁ Ao sec e Txayi (F σ₂A0 X "T T (a) Stresses (b) Forces 1 1 cos²0 = (1 + cos 20), sin²0 = ₁₁ 1 (1-cos²0), sin cos 0 = 2 Txv 0x1 6 Try Ao TxAo tan e Ao sec 8 ay Ao tan X sin 20
