Given the CMOS logic circuit below, derive the Boolean expression between the inputs A, B, C, D and output F. Verify the

Post by answerhappygod »

Given The Cmos Logic Circuit Below Derive The Boolean Expression Between The Inputs A B C D And Output F Verify The 1
Given The Cmos Logic Circuit Below Derive The Boolean Expression Between The Inputs A B C D And Output F Verify The 1 (23.31 KiB) Viewed 17 times

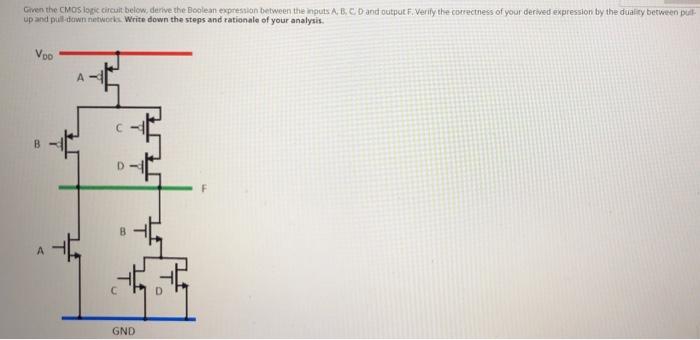

Given the CMOS logic circuit below, derive the Boolean expression between the inputs A, B, C, D and output F. Verify the correctness of your derived expression by the duality between pull- up and pull-down networks. Write down the steps and rationale of your analysis. Voo A U D T B T GND
