Three-bus power system with generation at bus#1, the loads at buses #2 and bus # 3 are as marked on the diagram. Line im

[answerhappygod]

Three Bus Power System With Generation At Bus 1 The Loads At Buses 2 And Bus 3 Are As Marked On The Diagram Line Im 1 (65.05 KiB) Viewed 23 times

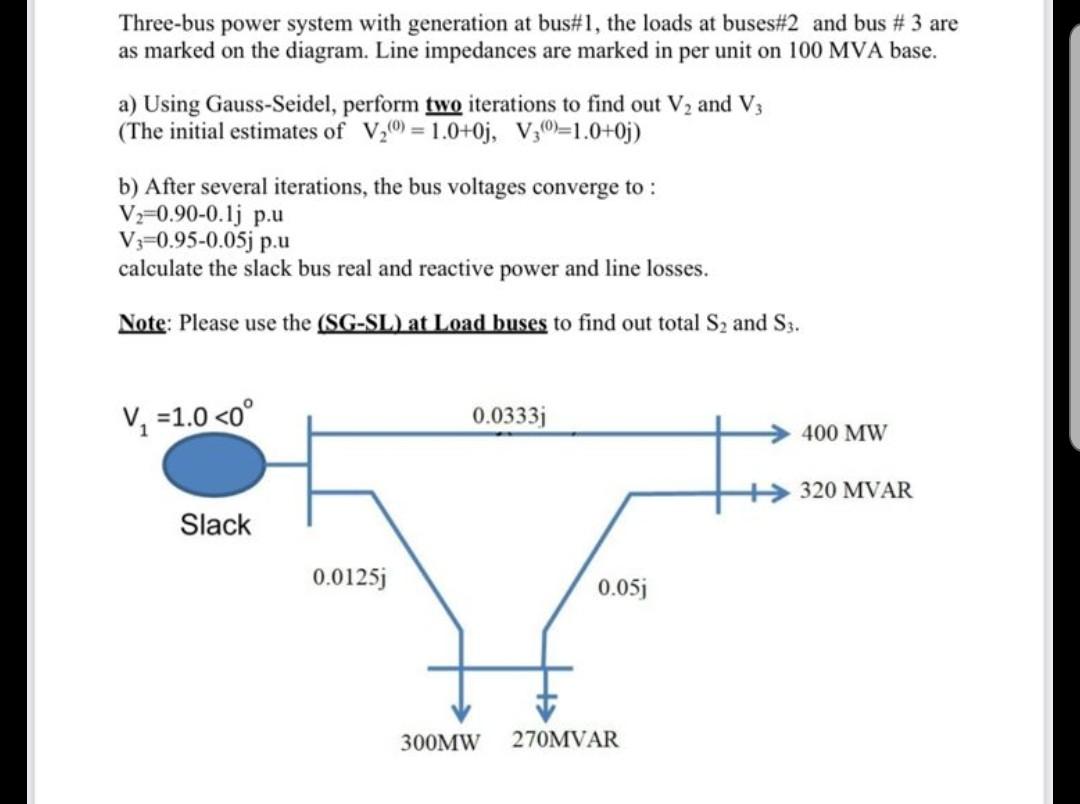

Three-bus power system with generation at bus#1, the loads at buses #2 and bus # 3 are as marked on the diagram. Line impedances are marked in per unit on 100 MVA base. a) Using Gauss-Seidel, perform two iterations to find out V₂ and V3 (The initial estimates of V₂0) = 1.0+0j, V30)=1.0+0j) b) After several iterations, the bus voltages converge to: V₂=0.90-0.1j p.u V3=0.95-0.05j p.u calculate the slack bus real and reactive power and line losses. Note: Please use the (SG-SL) at Load buses to find out total S₂ and S3. V₁ =1.0 <0° 0.0333j Slack 0.0125j 0.05j 300MW 270MVAR 400 MW 320 MVAR
