A single-phase full-bridge DC / AC inverter is supplied with a direct voltage of 400 V and modulated with a "voltage can
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
A single-phase full-bridge DC / AC inverter is supplied with a direct voltage of 400 V and modulated with a "voltage can

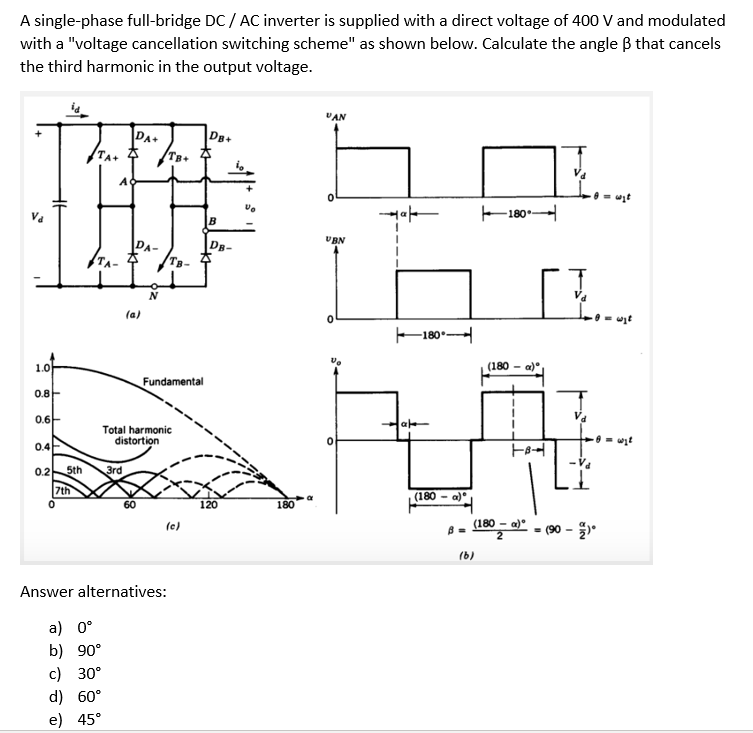

A single-phase full-bridge DC / AC inverter is supplied with a direct voltage of 400 V and modulated with a "voltage cancellation switching scheme" as shown below. Calculate the angle B that cancels the third harmonic in the output voltage. VAN DA+ DB+ TE wit A Va B DB- TA- 1.0 0.8- 0.6 0.4 0.2 5th 7th DA- O N (a) TB+ Fundamental Total harmonic distortion 3rd 0 60 (c) Answer alternatives: a) 0° b) 90° c) 30° d) 60° e) 45° 120 180 UBN al a 180 (180-a) B = 180- (b) [L (180-a) (180 a)⁰ tod - (90 - €)
