The single-phase thyristor rectifier shown in the figure below is supplied with an AC voltage of 230 Vrms 50Hz and deliv

Post by answerhappygod »

The Single Phase Thyristor Rectifier Shown In The Figure Below Is Supplied With An Ac Voltage Of 230 Vrms 50hz And Deliv 1
The Single Phase Thyristor Rectifier Shown In The Figure Below Is Supplied With An Ac Voltage Of 230 Vrms 50hz And Deliv 1 (66.13 KiB) Viewed 11 times

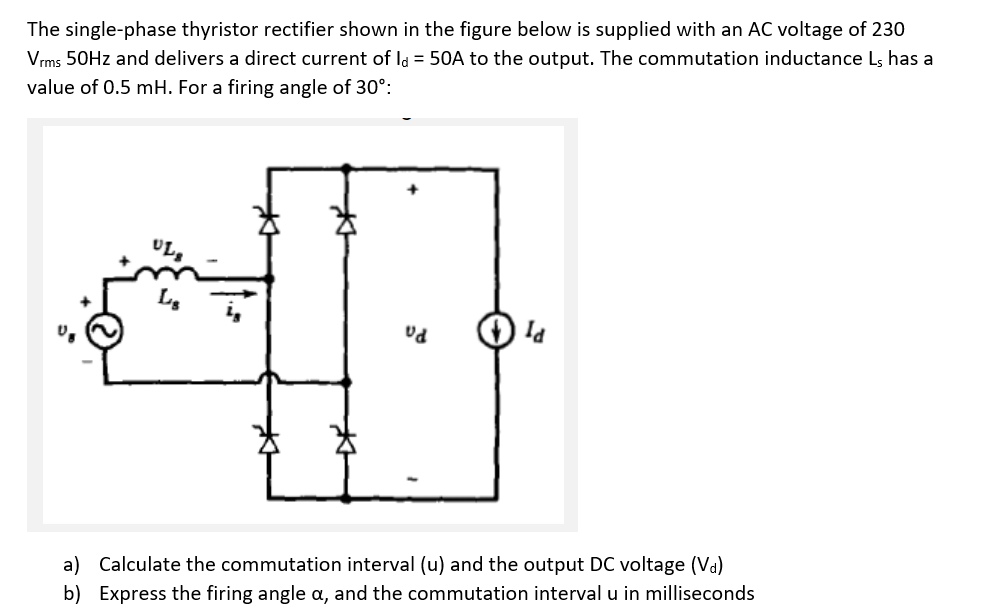

The single-phase thyristor rectifier shown in the figure below is supplied with an AC voltage of 230 Vrms 50Hz and delivers a direct current of ld = 50A to the output. The commutation inductance L, has a value of 0.5 mH. For a firing angle of 30°: ld vd U₂ a) Calculate the commutation interval (u) and the output DC voltage (Vd) b) Express the firing angle a, and the commutation interval u in milliseconds
