URGENT HELP NEEDED. Please help ASAP. Thank you

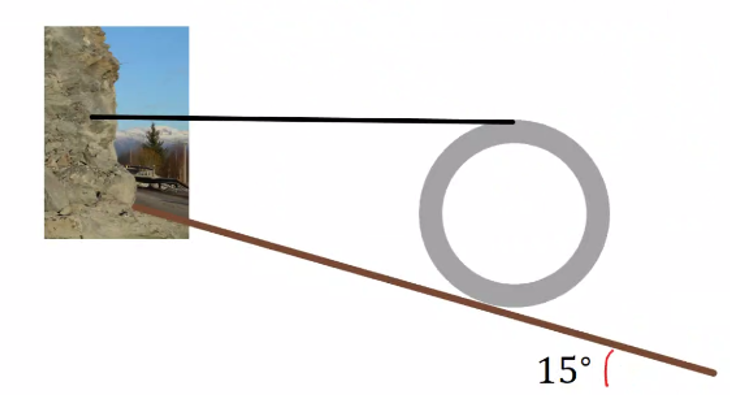

A concrete pipe with a radius of 2760 mm and a mass of 2800 kg
is located so that it can roll down a sloping plane with an
inclination angle of 15 degrees. A wire, attached to the top of the
tube, keeps the tube still. The wire is horizontal and the other
end is attached to a rock wall.
Draw the forces acting on the concrete pipe, and name the
forces. Which of the forces acting on the concrete pipe are equal,
and why?
Urgent Help Needed Please Help Asap Thank You A Concrete Pipe With A Radius Of 2760 Mm And A Mass Of 2800 Kg Is Locate 1 (151.1 KiB) Viewed 16 times
15° (
