QUESTION 1 [25 Marks] Floor construction of the office building in Figure 1 consists of 3 mm thick PVC floor tiles (16 k

[answerhappygod]

Question 1 25 Marks Floor Construction Of The Office Building In Figure 1 Consists Of 3 Mm Thick Pvc Floor Tiles 16 K 1 (109.83 KiB) Viewed 19 times

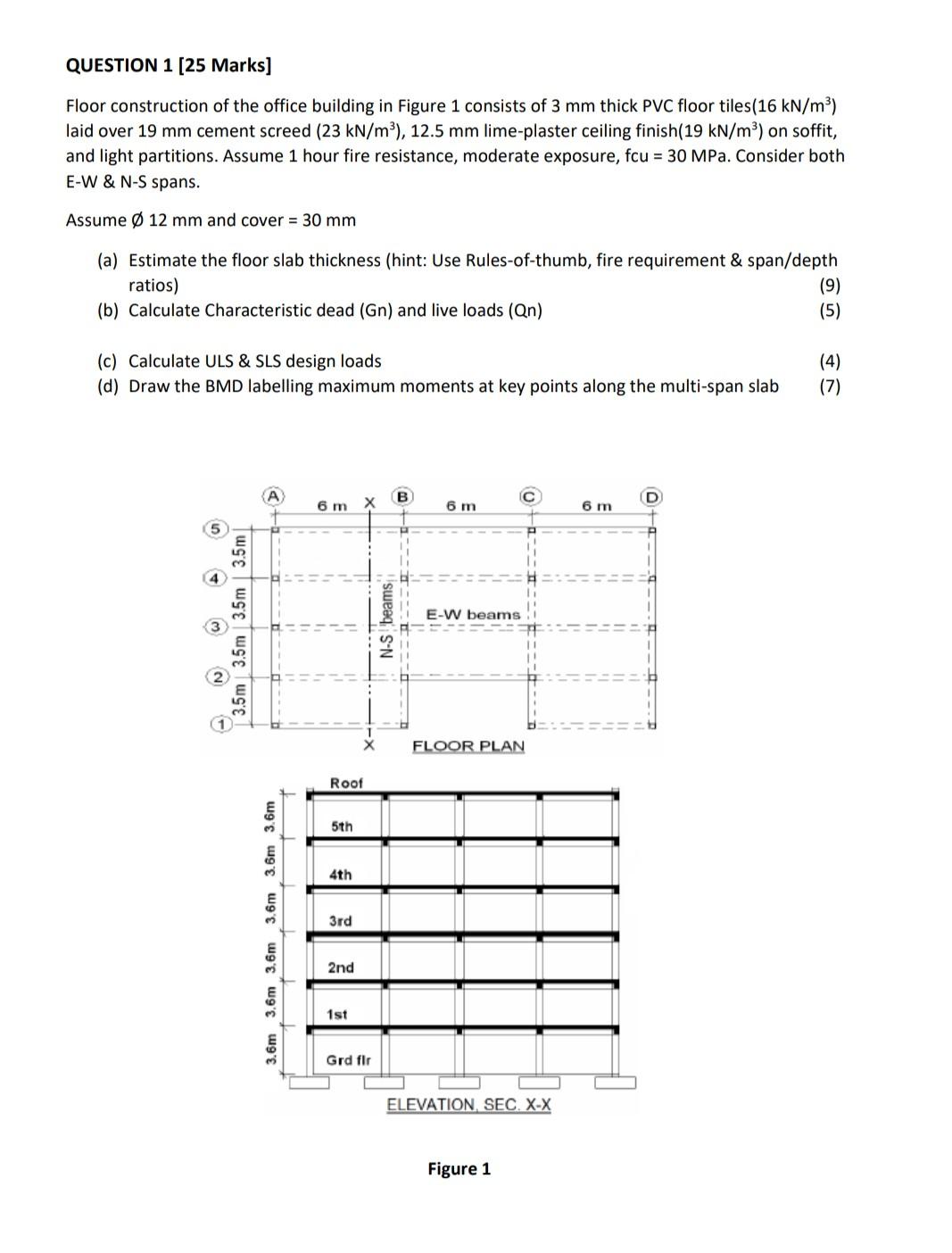

QUESTION 1 [25 Marks] Floor construction of the office building in Figure 1 consists of 3 mm thick PVC floor tiles (16 kN/m³) laid over 19 mm cement screed (23 kN/m³), 12.5 mm lime-plaster ceiling finish(19 kN/m³) on soffit, and light partitions. Assume 1 hour fire resistance, moderate exposure, fcu = 30 MPa. Consider both E-W & N-S spans. Assume Ø 12 mm and cover = 30 mm (a) Estimate the floor slab thickness (hint: Use Rules-of-thumb, fire requirement & span/depth ratios) (9) (b) Calculate Characteristic dead (Gn) and live loads (Qn) (5) (c) Calculate ULS & SLS design loads (4) (d) Draw the BMD labelling maximum moments at key points along the multi-span slab (7) B D 6 m X 6 m 6 m E-W beams FLOOR PLAN A) 3.5m 3.5m 3.5m | 3.5m| N-S beams (2) L 1 3.6m 3.6m 3.6m 3.6m 3.6m 3.6m --- Roof 5th 4th 3rd 2nd 1st Grd flr ELEVATION, SEC. X-X Figure 1
