Refer to Figure shown below. Given: H₁ = 450 mm., H₂= 300 mm., h₁= 600 mm., h= 400 mm., z = 300 mm., k₁= 0.075 cm/sec, a

[answerhappygod]

Refer To Figure Shown Below Given H 450 Mm H 300 Mm H 600 Mm H 400 Mm Z 300 Mm K 0 075 Cm Sec A 1 (199.58 KiB) Viewed 12 times

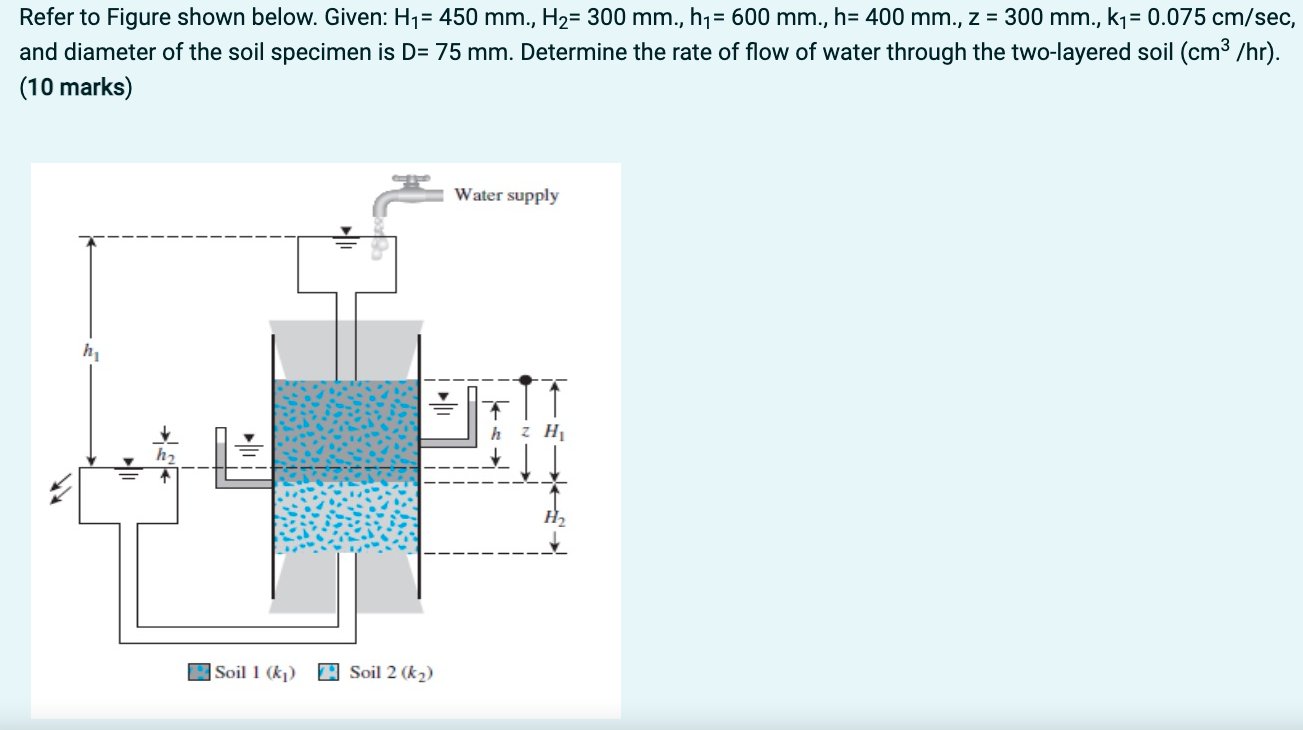

Refer to Figure shown below. Given: H₁ = 450 mm., H₂= 300 mm., h₁= 600 mm., h= 400 mm., z = 300 mm., k₁= 0.075 cm/sec, and diameter of the soil specimen is D= 75 mm. Determine the rate of flow of water through the two-layered soil (cm³/hr). (10 marks) Water supply h₂ Soil 1 (k) Soil 2 (k₂)
