sum of the moment at E= BD(8)-10(17)=0 and solve for BD

Post by answerhappygod »

sum of the moment at E=
BD(8)-10(17)=0
and solve for BD
Sum Of The Moment At E Bd 8 10 17 0 And Solve For Bd 1
Sum Of The Moment At E Bd 8 10 17 0 And Solve For Bd 1 (54.71 KiB) Viewed 21 times
Sum Of The Moment At E Bd 8 10 17 0 And Solve For Bd 2
Sum Of The Moment At E Bd 8 10 17 0 And Solve For Bd 2 (54.71 KiB) Viewed 21 times

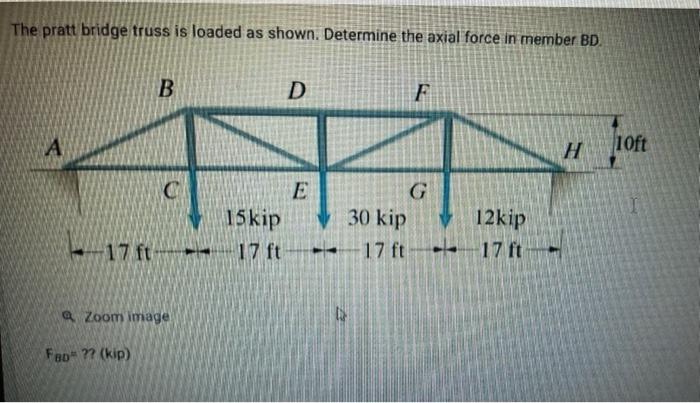

The pratt bridge truss is loaded as shown. Determine the axial force in member BD. B D F 10ft A H G -17 ft a Zoom image FBD ?? (kip) 15kip 17 ft E 30 kip 17 ft 12kip 17 ft
