A steel rod and a brass rod, both with cylindrical cross sections, are connected at C and constrained by rigid supports

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

A steel rod and a brass rod, both with cylindrical cross sections, are connected at C and constrained by rigid supports

Post by answerhappygod »

A Steel Rod And A Brass Rod Both With Cylindrical Cross Sections Are Connected At C And Constrained By Rigid Supports 1
A Steel Rod And A Brass Rod Both With Cylindrical Cross Sections Are Connected At C And Constrained By Rigid Supports 1 (26.89 KiB) Viewed 16 times

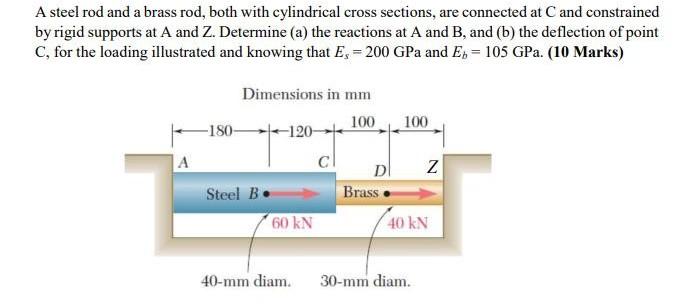

A steel rod and a brass rod, both with cylindrical cross sections, are connected at C and constrained by rigid supports at A and Z. Determine (a) the reactions at A and B, and (b) the deflection of point C, for the loading illustrated and knowing that E, = 200 GPa and E= 105 GPa. (10 Marks) Dimensions in mm 100 100 -180-120- D Steel Be 40-mm diam. 60 kN Brass Z 40 kN 30-mm diam.
