3. A pilecap is given as in Figure 1. Draw the pilecap at a scale of 1:7 on an A3 size drawing paper. Draw the border, t
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
3. A pilecap is given as in Figure 1. Draw the pilecap at a scale of 1:7 on an A3 size drawing paper. Draw the border, t

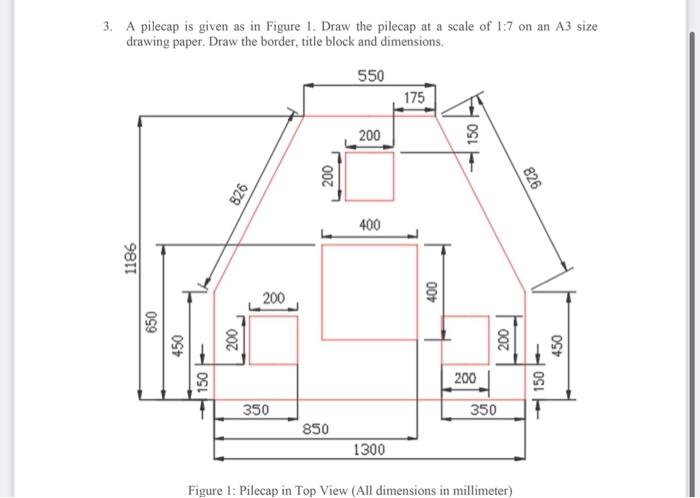

3. A pilecap is given as in Figure 1. Draw the pilecap at a scale of 1:7 on an A3 size drawing paper. Draw the border, title block and dimensions. 550 175 200 1186 650 450 150- 826 200 200 200 400 400 -150 200 200 826 150 350 350 4 850 1300 Figure 1: Pilecap in Top View (All dimensions in millimeter) 450
