1. (50 points) A reinforced concrete short column has a cross-sectional size of 450 x 300 mm and is loaded as shown. It

[answerhappygod]

1 50 Points A Reinforced Concrete Short Column Has A Cross Sectional Size Of 450 X 300 Mm And Is Loaded As Shown It 1 (76.2 KiB) Viewed 18 times

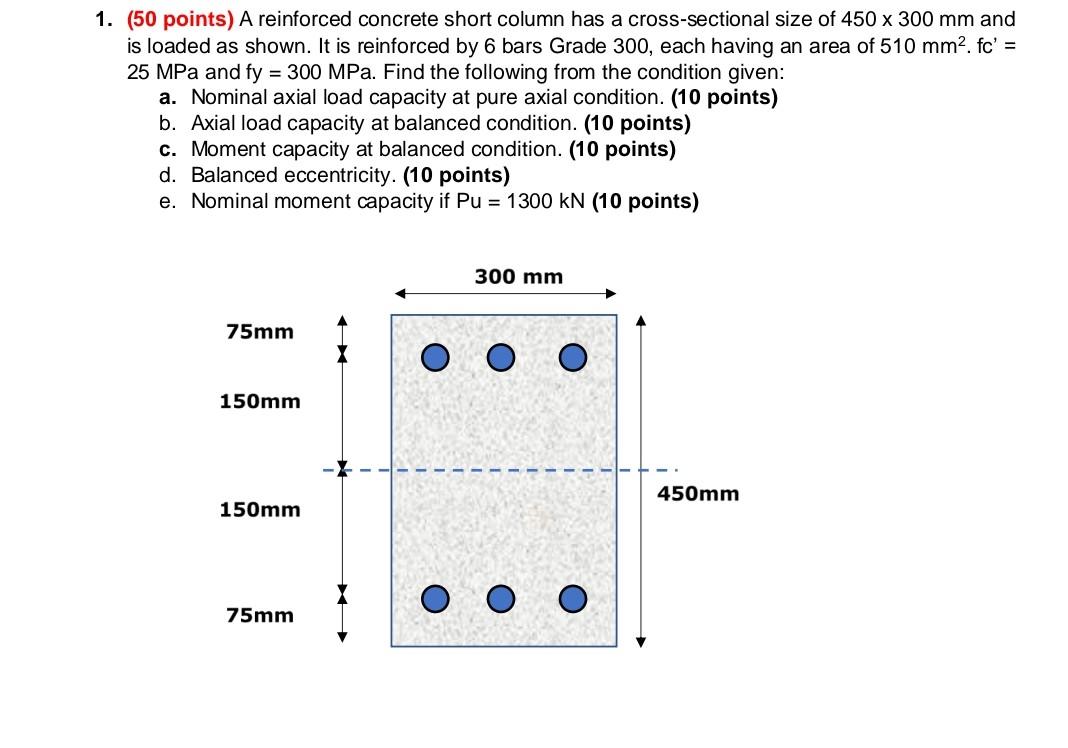

1. (50 points) A reinforced concrete short column has a cross-sectional size of 450 x 300 mm and is loaded as shown. It is reinforced by 6 bars Grade 300, each having an area of 510 mm². fc' = 25 MPa and fy = 300 MPa. Find the following from the condition given: a. Nominal axial load capacity at pure axial condition. (10 points) b. Axial load capacity at balanced condition. (10 points) c. Moment capacity at balanced condition. (10 points) d. Balanced eccentricity. (10 points) e. Nominal moment capacity if Pu = 1300 kN (10 points) 300 mm 75mm 150mm 450mm 150mm 75mm
