Given the system in Figure below, find the values of K1 and K2 to yield a peak time of 1.5 second and a settling time of

Post by answerhappygod »

Given The System In Figure Below Find The Values Of K1 And K2 To Yield A Peak Time Of 1 5 Second And A Settling Time Of 1
Given The System In Figure Below Find The Values Of K1 And K2 To Yield A Peak Time Of 1 5 Second And A Settling Time Of 1 (57.86 KiB) Viewed 19 times

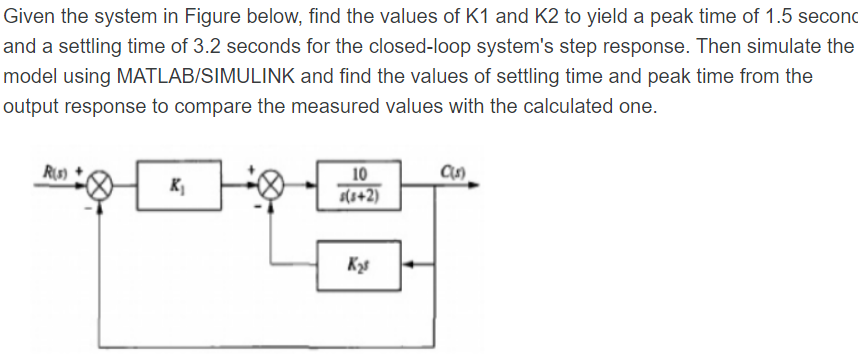

Given the system in Figure below, find the values of K1 and K2 to yield a peak time of 1.5 second and a settling time of 3.2 seconds for the closed-loop system's step response. Then simulate the model using MATLAB/SIMULINK and find the values of settling time and peak time from the output response to compare the measured values with the calculated one. C(s) R(s) K₁ H 10 s(+2)
