For the beam and loading shown. a) Draw the shear and bending-moment diagrams. b) Determine the maximum absolute value o

[answerhappygod]

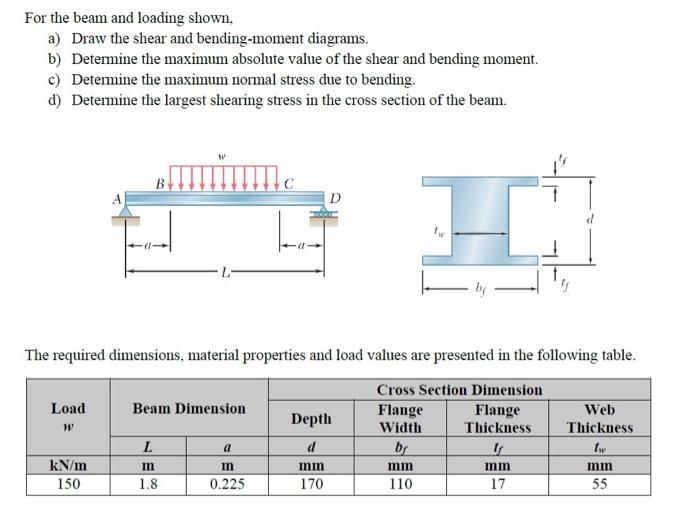

For The Beam And Loading Shown A Draw The Shear And Bending Moment Diagrams B Determine The Maximum Absolute Value O 1 (42.69 KiB) Viewed 13 times

For the beam and loading shown. a) Draw the shear and bending-moment diagrams. b) Determine the maximum absolute value of the shear and bending moment. c) Determine the maximum normal stress due to bending. d) Determine the largest shearing stress in the cross section of the beam. A D The required dimensions, material properties and load values are presented in the following table. Cross Section Dimension Load Beam Dimension Flange Flange Web Depth W Width Thickness Thickness L a d br tr tw kN/m m m mm mm mm mm 150 1.8 0.225 170 110 17 55
