A Fink truss is loaded as shown, calculate the forces in members BD, CD and CE. Assuming the members are pin connected a

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

A Fink truss is loaded as shown, calculate the forces in members BD, CD and CE. Assuming the members are pin connected a

Post by answerhappygod »

A Fink Truss Is Loaded As Shown Calculate The Forces In Members Bd Cd And Ce Assuming The Members Are Pin Connected A 1
A Fink Truss Is Loaded As Shown Calculate The Forces In Members Bd Cd And Ce Assuming The Members Are Pin Connected A 1 (26.11 KiB) Viewed 21 times

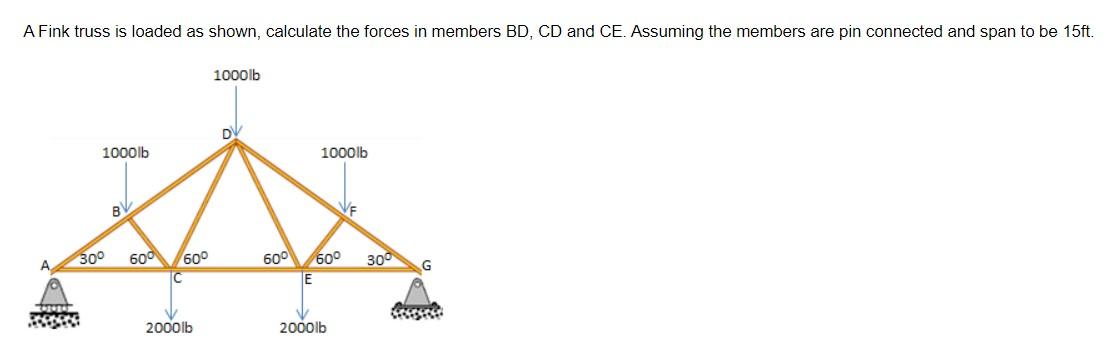

A Fink truss is loaded as shown, calculate the forces in members BD, CD and CE. Assuming the members are pin connected and span to be 15ft. 1000lb 1000lb 1000lb B A 30⁰ 600 600 A 600 60° 300 2000lb 2000lb G
