(b) In Figure Q3(b), a structure consists of a spring AB of spring constant, k=3kN/mm and a rod BC. The spring is initia

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

(b) In Figure Q3(b), a structure consists of a spring AB of spring constant, k=3kN/mm and a rod BC. The spring is initia

Post by answerhappygod »

B In Figure Q3 B A Structure Consists Of A Spring Ab Of Spring Constant K 3kn Mm And A Rod Bc The Spring Is Initia 1
B In Figure Q3 B A Structure Consists Of A Spring Ab Of Spring Constant K 3kn Mm And A Rod Bc The Spring Is Initia 1 (86.57 KiB) Viewed 28 times

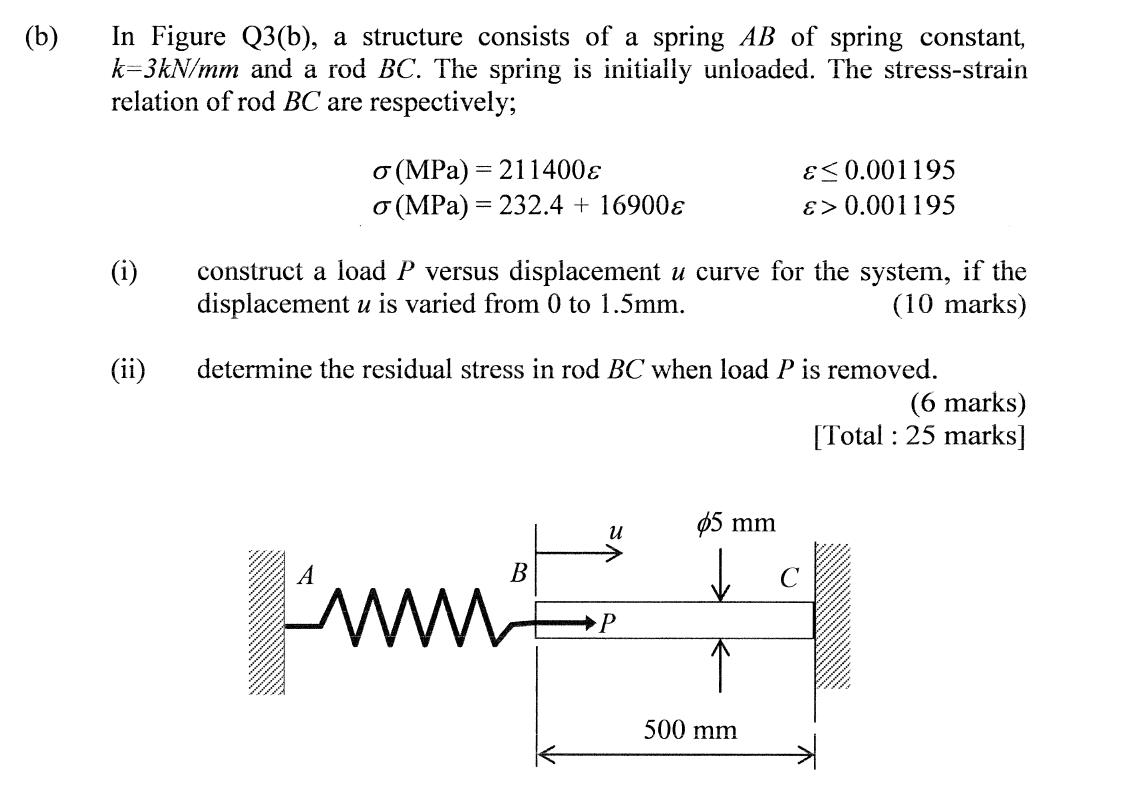

(b) In Figure Q3(b), a structure consists of a spring AB of spring constant, k=3kN/mm and a rod BC. The spring is initially unloaded. The stress-strain relation of rod BC are respectively; o (MPa) = 211400€ &≤0.001195 ε> 0.001195 o (MPa) = 232.4 + 16900 (i) construct a load P versus displacement u curve for the system, if the displacement u is varied from 0 to 1.5mm. (10 marks) (ii) determine the residual stress in rod BC when load P is removed. (6 marks) [Total: 25 marks] 65 mm u B ↓ fim 500 mm ww C
