Question: An orthogonal cutting operation is being carried out under the following conditions: depth of cut = 0.15 mm, w

[answerhappygod]

Question An Orthogonal Cutting Operation Is Being Carried Out Under The Following Conditions Depth Of Cut 0 15 Mm W 1 (18.32 KiB) Viewed 23 times

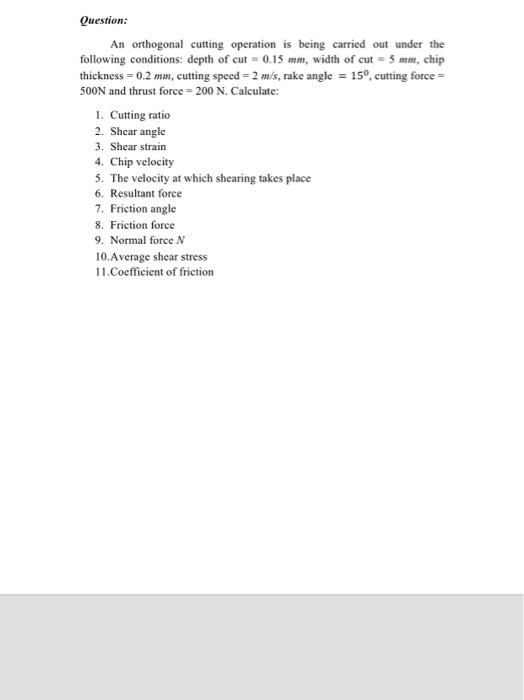

Question: An orthogonal cutting operation is being carried out under the following conditions: depth of cut = 0.15 mm, width of cut = 5 mm, chip thickness = 0.2 mm, cutting speed = 2 m/s, rake angle = 150, cutting force= 500N and thrust force - 200 N. Calculate: 1. Cutting ratio 2. Shear angle 3. Shear strain 4. Chip velocity 5. The velocity at which shearing takes place 6. Resultant force 7. Friction angle 8. Friction force 9. Normal force N 10.Average shear stress 11.Coefficient of friction
