E -f35) ( 4. The following Figure represents a stage in a turbomachine. (Answer questions: a-d) Su a Is this stage for a

[answerhappygod]

E F35 4 The Following Figure Represents A Stage In A Turbomachine Answer Questions A D Su A Is This Stage For A 1 (42.75 KiB) Viewed 17 times

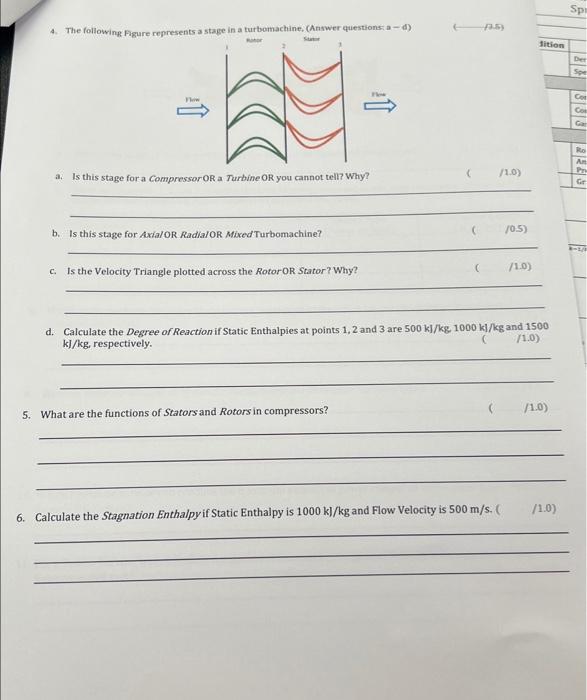

E -f35) ( 4. The following Figure represents a stage in a turbomachine. (Answer questions: a-d) Su a Is this stage for a compressor OR a Turbine OR you cannot tell? Why? b. Is this stage for Axial OR Radial OR Mixed Turbomachine? /0.5) c. Is the Velocity Triangle plotted across the Rotor OR Stator? Why? ( /1.0) d. Calculate the Degree of Reaction if Static Enthalpies at points 1, 2 and 3 are 500 kJ/kg, 1000 kJ/kg and 1500 kJ/kg, respectively. /1.0) 5. What are the functions of Stators and Rotors in compressors? /1.0) 6. Calculate the Stagnation Enthalpy if Static Enthalpy is 1000 kJ/kg and Flow Velocity is 500 m/s. ( /1.0) Sition /1.0) Sp Der Spe Co Co Gar Ro An Pr Gr
