Question 4 (25 pts) For the structure and loading condition shown, a. Draw the shear force and bending moment diagrams.

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Question 4 (25 pts) For the structure and loading condition shown, a. Draw the shear force and bending moment diagrams.

Post by answerhappygod »

Question 4 25 Pts For The Structure And Loading Condition Shown A Draw The Shear Force And Bending Moment Diagrams 1
Question 4 25 Pts For The Structure And Loading Condition Shown A Draw The Shear Force And Bending Moment Diagrams 1 (26.43 KiB) Viewed 22 times
Question 4 25 Pts For The Structure And Loading Condition Shown A Draw The Shear Force And Bending Moment Diagrams 2
Question 4 25 Pts For The Structure And Loading Condition Shown A Draw The Shear Force And Bending Moment Diagrams 2 (15.64 KiB) Viewed 22 times

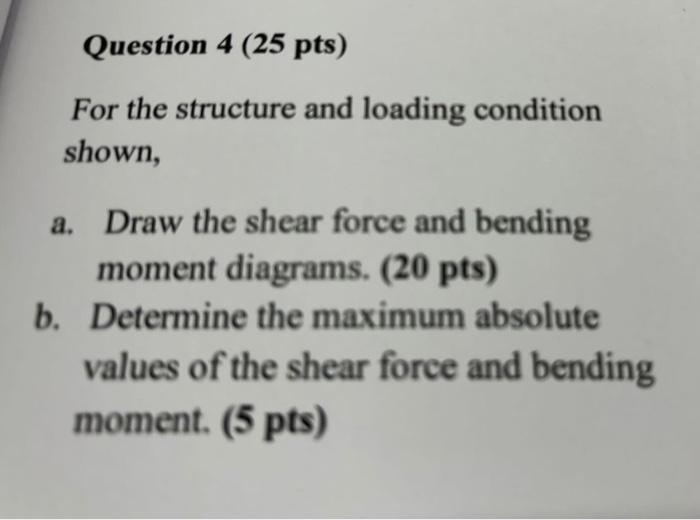

Question 4 (25 pts) For the structure and loading condition shown, a. Draw the shear force and bending moment diagrams. (20 pts) b. Determine the maximum absolute values of the shear force and bending moment. (5 pts)

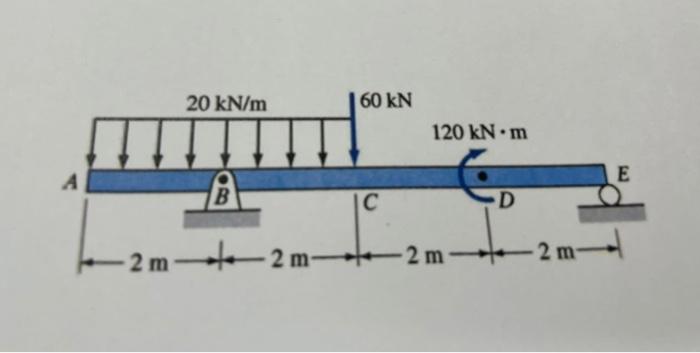

A 20 kN/m Ţ B 2 m m-2m- 160 KN C 120 kN m D 2 m- -2m- E
