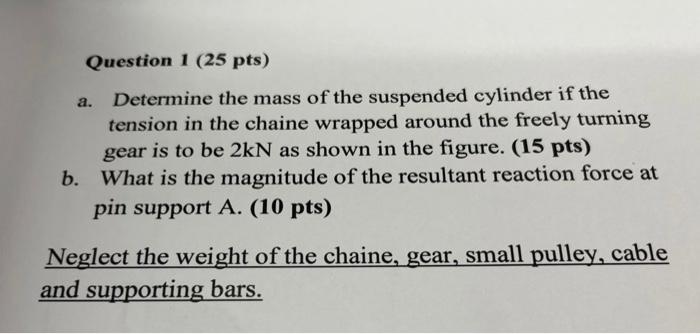

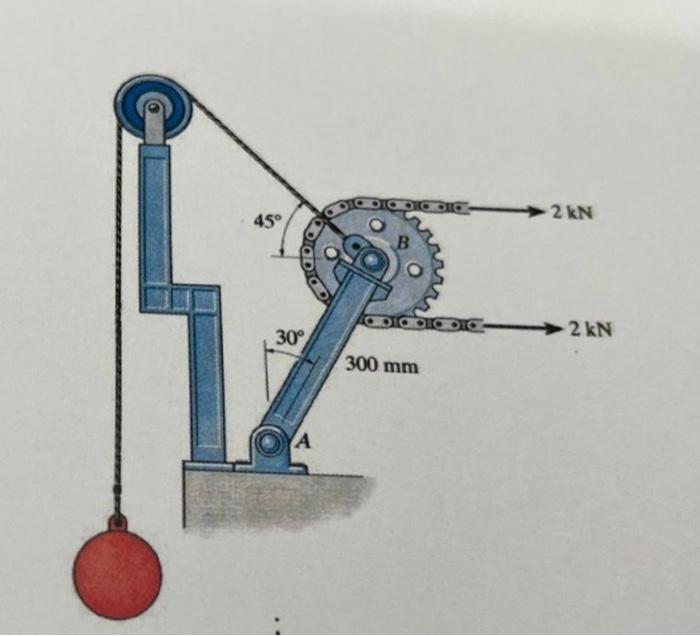

Question 1 (25 pts) a. Determine the mass of the suspended cylinder if the tension in the chaine wrapped around the freely turning gear is to be 2kN as shown in the figure. (15 pts) b. What is the magnitude of the resultant reaction force at pin support A. (10 pts) Neglect the weight of the chaine, gear, small pulley, cable and supporting bars.
45° 30° A DOPODO DODA 300 mm 2 kN -2 kN
