Question 1 A Fink truss is loaded as shown, calculate the forces in members BD, CD and CE. Assuming the members are pin

Post by answerhappygod »

Question 1 A Fink Truss Is Loaded As Shown Calculate The Forces In Members Bd Cd And Ce Assuming The Members Are Pin 1
Question 1 A Fink Truss Is Loaded As Shown Calculate The Forces In Members Bd Cd And Ce Assuming The Members Are Pin 1 (229.77 KiB) Viewed 20 times

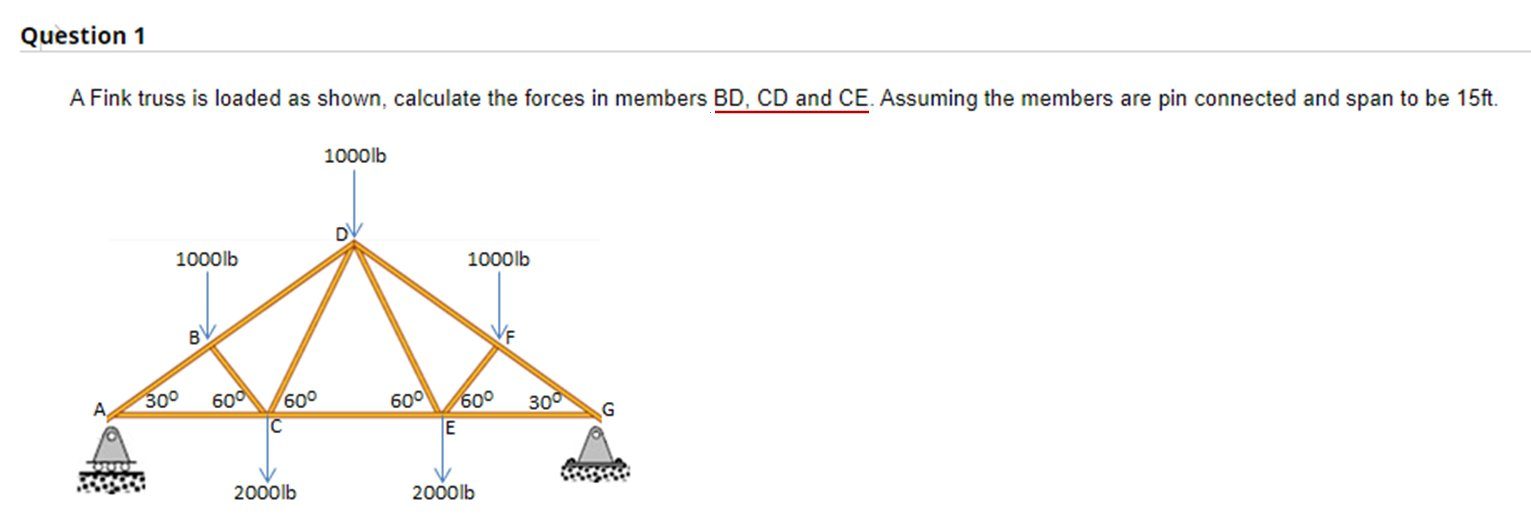

Question 1 A Fink truss is loaded as shown, calculate the forces in members BD, CD and CE. Assuming the members are pin connected and span to be 15ft. 1000lb 1000lb 1000lb 30⁰ 600 60⁰ C 2000lb 60⁰ 60° E 2000lb 300 G
