Write %%Matlab functions to:
Problem 1
Write a Matlab function that encapsulates all the steps
involved in analyzing a spring assemblage.
Problem 2
Analyze the following spring assemblages using the
implemented Matlab functions.
(a) 𝑘 = 200 kN/m 𝛿 = 0.02 m
(b) 𝑘 = 200 kN/m 𝛿 = 0.02 m 2
(c) 𝑘1 = 100 N/m 𝑘2 = 200 N/m 𝑘3 = 300 N/m 𝑃 = 100 N 𝑘 = 50
lb/in 𝐹1 = 25 lb 𝐹2 = 15 lb

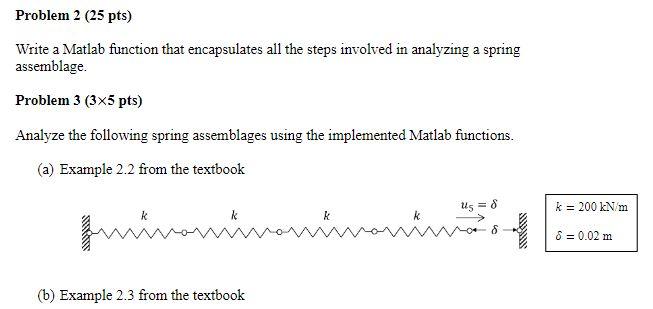

Write Matlab Functions To Problem 1 Write A Matlab Function That Encapsulates All The Steps Involved In Analyzing A S 1 (24.9 KiB) Viewed 21 times

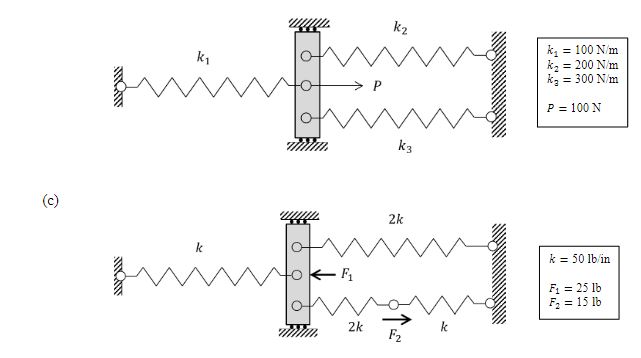

Write Matlab Functions To Problem 1 Write A Matlab Function That Encapsulates All The Steps Involved In Analyzing A S 2 (32.25 KiB) Viewed 21 times

Problem 2 (25 pts) Write a Matlab function that encapsulates all the steps involved in analyzing a spring assemblage. Problem 3 (3×5 pts) Analyze the following spring assemblages using the implemented Matlab functions. (a) Example 2.2 from the textbook = 8 k 8 finnammomimomima. * (b) Example 2.3 from the textbook k = 200 kN/m 8 = 0.02 m
O k₁ pun k ALTE > P to F₁ 2k k₂ k3 2k F₂ k₁= 100 N/m k₂= 200 N/m k₂ = 300 N/m P = 100 N k = 50 lb/in F₁ = 25 lb F₂ = 15 lb
