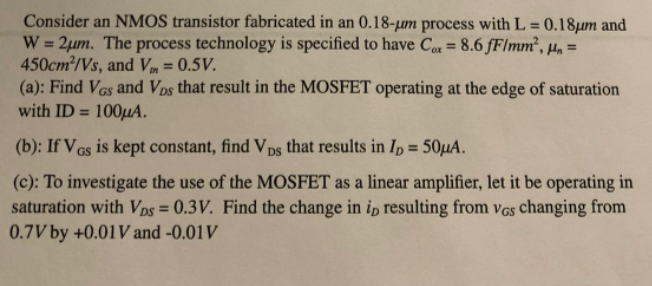

Consider an NMOS transistor fabricated in an 0.18-um process with L = 0.18μm and W=2μm. The process technology is specif
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
Consider an NMOS transistor fabricated in an 0.18-um process with L = 0.18μm and W=2μm. The process technology is specif
Consider an NMOS transistor fabricated in an 0.18-um process with L = 0.18μm and W=2μm. The process technology is specified to have Cox = 8.6 fF/mm², μm = 450cm²/Vs, and Vm = 0.5V. (a): Find Vos and Vps that result in the MOSFET operating at the edge of saturation with ID= 100μA. (b): If VGs is kept constant, find VDs that results in Ip = 50μA. GS DS (c): To investigate the use of the MOSFET as a linear amplifier, let it be operating in saturation with VDs = 0.3V. Find the change in i, resulting from VGs changing from 0.7V by +0.01 V and -0.01 V
