6 Pts Question 43 Refer To The Figure Below Calculate Av Assume Vgsq 2 2v Vdd 12v Rd 4 4kohms Rs 0 8kohms Lp 1 (44.83 KiB) Viewed 14 times

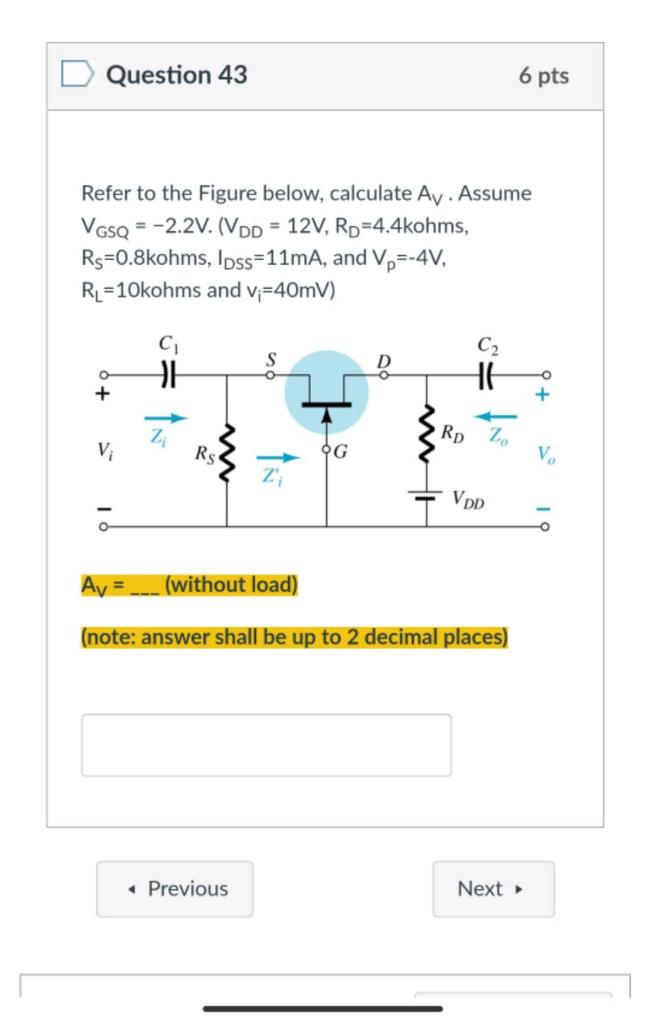

6 pts Question 43 Refer to the Figure below, calculate Av. Assume VGSQ = -2.2V. (VDD = 12V, RD=4.4kohms, Rs=0.8kohms, lpss-11mA, and V₁=-4V, RL=10kohms and v;=40mV) + RD Zo V₁ Rs OG VDD Av= (without load) (note: answer shall be up to 2 decimal places) Next ◄ Previous
Question 44 6 pts Refer to the Figure below, calculate Ay if VDD = 9V, RG-1Mohms, Rs-2.4kohms, lpss-17mA, VGSQ = - 3.0 V and Vp=-4V, and Yos = 0.021ms) 9 VDD D C₁ G V₁ S Z₁ F Vo RG Rs Zo Av= (note: answer shall be up to 2 decimal places) Next ◄ Previous Submit quiz Not saved
Question 42 Refer to the Figure below. C₁ V₁0H Z₁ Cs Compute for Av= (without load) if VDD=20V, RG-157Mohms, RD=2.1 kohms, yfs= 4.09 ms, yos=0.05mS Ipss =10mA, RL=10kohms and Vi= 20mV. (note: answer shall be up to 2 decimal places) G RG VDD RD Rs D S 6 pts - Vo Z
