EEEE1028 3. a) State two reasons why a three-phase system is preferred over a single-phase system for AC transmission an

[answerhappygod]

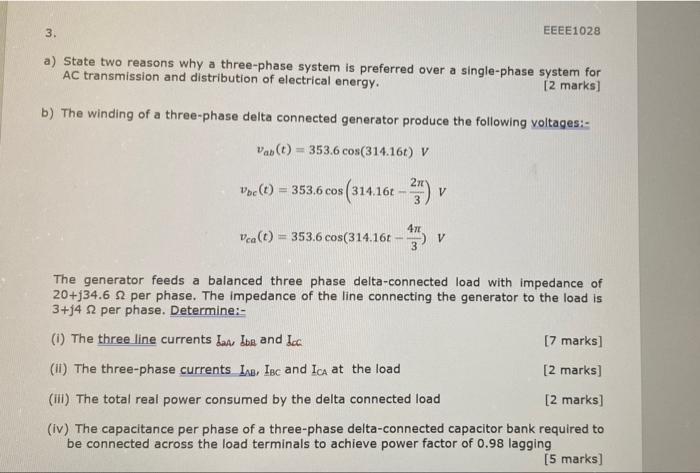

Eeee1028 3 A State Two Reasons Why A Three Phase System Is Preferred Over A Single Phase System For Ac Transmission An 1 (43.62 KiB) Viewed 26 times

EEEE1028 3. a) State two reasons why a three-phase system is preferred over a single-phase system for AC transmission and distribution of electrical energy. [2 marks] b) The winding of a three-phase delta connected generator produce the following voltages:- vab (t) = 353.6 cos(314.16t) V Vbe (t) = 353.6 cos cos (314.16t-2) v V Vca (t) = 353.6 cos(314.16t-) V The generator feeds a balanced three phase delta-connected load with impedance of 20+134.6 2 per phase. The impedance of the line connecting the generator to the load is 3+14 2 per phase. Determine:- (i) The three line currents Jan, Iba and Icc [7 marks] (II) The three-phase currents IAB, IBC and ICA at the load [2 marks] (ii) The total real power consumed by the delta connected load [2 marks] (iv) The capacitance per phase of a three-phase delta-connected capacitor bank required to be connected across the load terminals to achieve power factor of 0.98 lagging [5 marks]
