Too Cool: Heat and Fan ON Temp OK S OFF 150- Musta Too Warm: A/C and Fan ON Too Cool: Continue HEAT Time Out: Fan OFF COOL Too Warm: Continue Too Warm: Heat OFF CIRCULATE Too Cool: A/C OFF Time OK: Continue

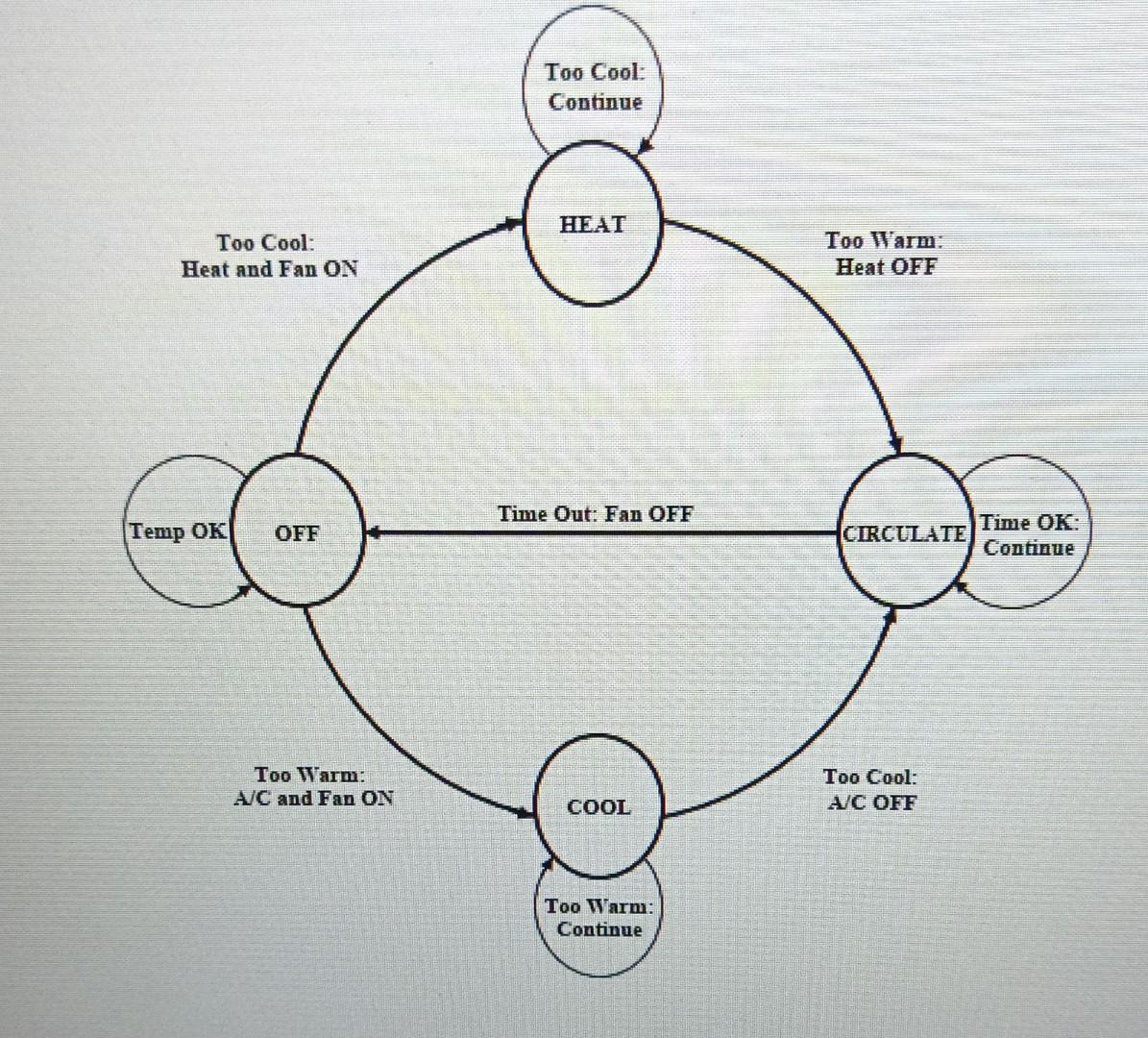

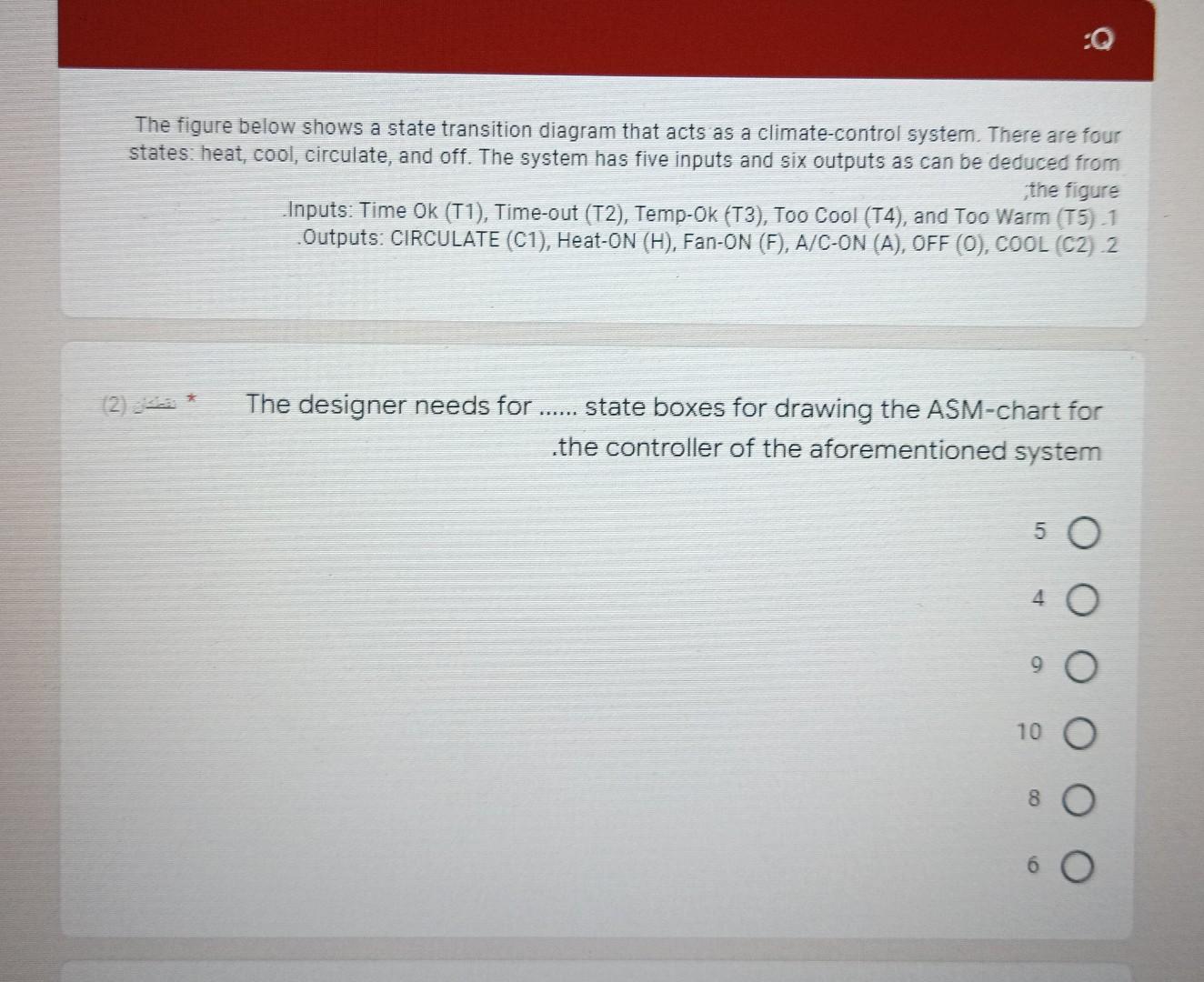

The figure below shows a state transition diagram that acts as a climate-control system. There are four states: heat, cool, circulate, and off. The system has five inputs and six outputs as can be deduced from the figure Inputs: Time Ok (T1), Time-out (T2), Temp-Ok (T3), Too Cool (T4), and Too Warm (T5).1 Outputs: CIRCULATE (C1), Heat-ON (H), Fan-ON (F), A/C-ON (A), OFF (O), COOL (C2) 2 (2) **** The designer needs for ****** state boxes for drawing the ASM-chart for the controller of the aforementioned system 5 O 4 9 10 O
