1. Answer the Following Questions: a. What types of counters shown in the following figures A and B. b. Apply the clock

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

1. Answer the Following Questions: a. What types of counters shown in the following figures A and B. b. Apply the clock

Post by answerhappygod »

1 Answer The Following Questions A What Types Of Counters Shown In The Following Figures A And B B Apply The Clock 1
1 Answer The Following Questions A What Types Of Counters Shown In The Following Figures A And B B Apply The Clock 1 (88.54 KiB) Viewed 24 times

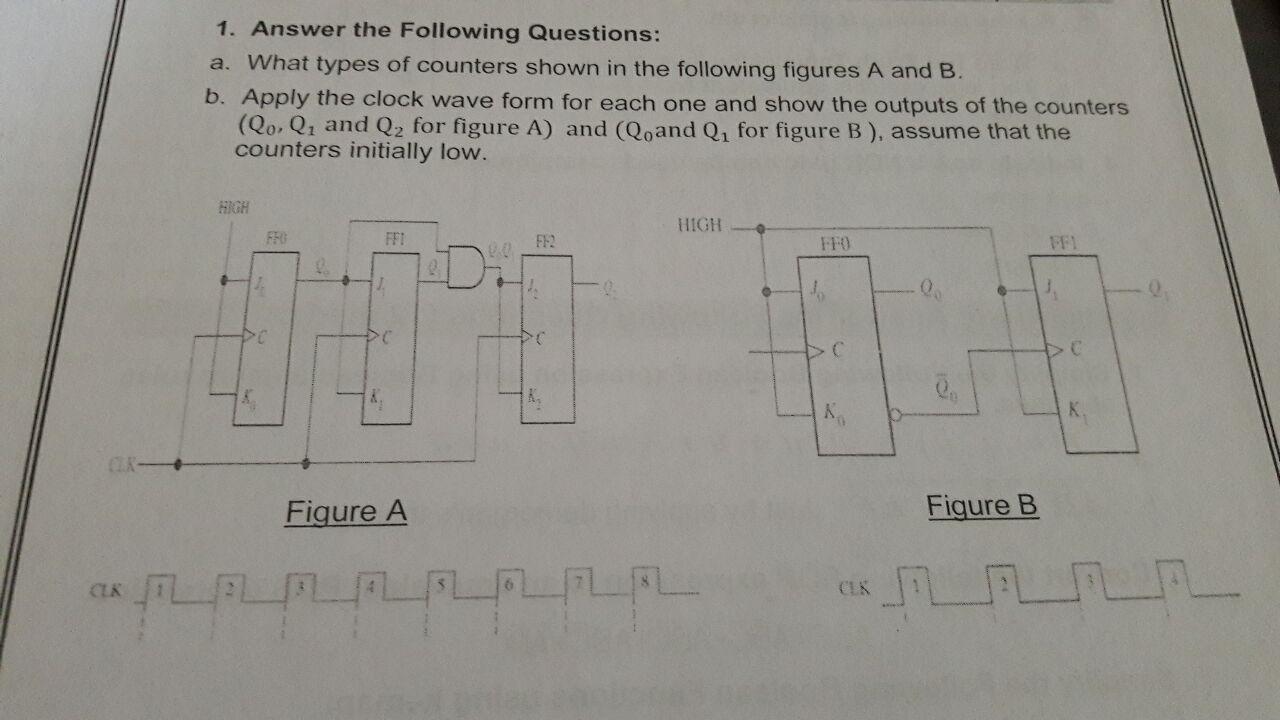

1. Answer the Following Questions: a. What types of counters shown in the following figures A and B. b. Apply the clock wave form for each one and show the outputs of the counters (Qo, Q1 and Q2 for figure A) and (Q,and Q₁ for figure B), assume that the counters initially low. HIGH HIGH FFG I 10 3₁ Figure A CLK * p p p p p p p CLK Figure B
