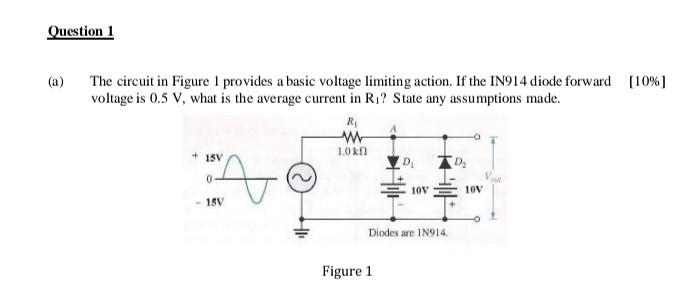

Question 1 The circuit in Figure 1 provides a basic voltage limiting action. If the IN914 diode forward [10% ] voltage is 0.5 V, what is the average current in R₁? State any assumptions made. R₁ W 1.0 k +15V 0 10V 10V - 15V Diodes are 1N914. Figure 1
