The outputs of two CMOS inverters are accidentally tied together, as shown in Figure below. What is the voltage at the c

Post by answerhappygod »

The Outputs Of Two Cmos Inverters Are Accidentally Tied Together As Shown In Figure Below What Is The Voltage At The C 1
The Outputs Of Two Cmos Inverters Are Accidentally Tied Together As Shown In Figure Below What Is The Voltage At The C 1 (55.76 KiB) Viewed 26 times

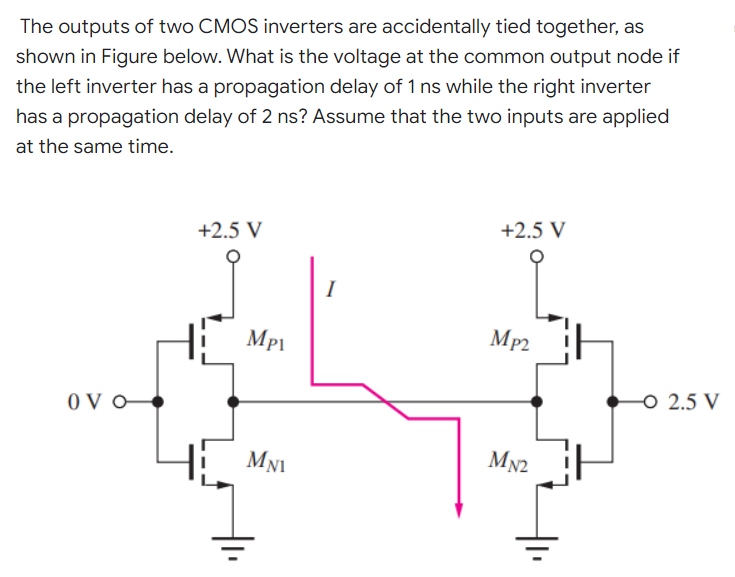

The outputs of two CMOS inverters are accidentally tied together, as shown in Figure below. What is the voltage at the common output node if the left inverter has a propagation delay of 1 ns while the right inverter has a propagation delay of 2 ns? Assume that the two inputs are applied at the same time. +2.5 V +2.5 V I Mp2 OVO Mp1 MNI MN2 O 2.5 V
