(g) Figure 6 is standard common-emitter, single-stage, NPN transistor (Q₁) amplifier. 2 3 R ww 5 ΚΩ + V₁15 V output Figu

Post by answerhappygod »

1
1 (19.47 KiB) Viewed 19 times
do asap

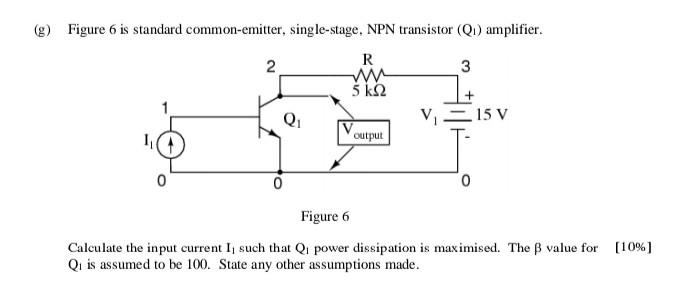

(g) Figure 6 is standard common-emitter, single-stage, NPN transistor (Q₁) amplifier. 2 3 R ww 5 ΚΩ + V₁15 V output Figure 6 Calculate the input current I, such that Q₁ power dissipation is maximised. The ß value for [10% ] Qi is assumed to be 100. State any other assumptions made. Q₁
