(j) A standard, common-emitter amplifier circuit is shown in Figure 8. Vcc +10 V Bpc=150 Bac=175 R₁ 47 ΚΩ Vout R₁ '600 Ω
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
(j) A standard, common-emitter amplifier circuit is shown in Figure 8. Vcc +10 V Bpc=150 Bac=175 R₁ 47 ΚΩ Vout R₁ '600 Ω

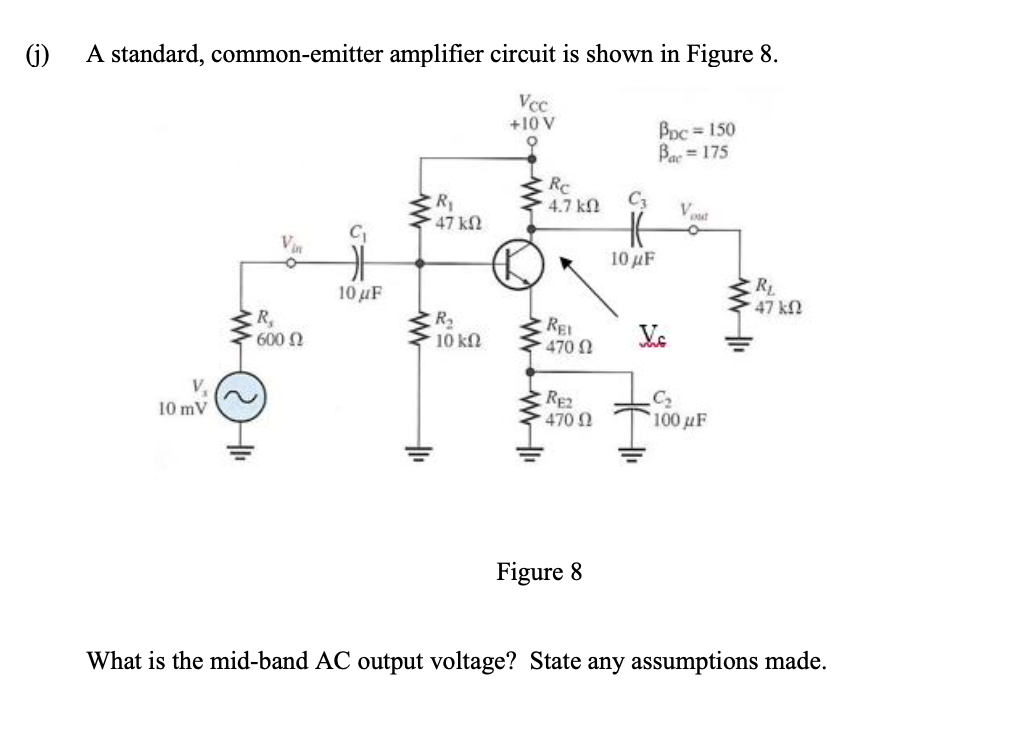

(j) A standard, common-emitter amplifier circuit is shown in Figure 8. Vcc +10 V Bpc=150 Bac=175 R₁ 47 ΚΩ Vout R₁ '600 Ω 10 μF www 6.3⁰ R₂ 10 ΚΩ www Rc 4.7 ΚΩ C₂ H 10 μF ww Vc R₁ 47 ΚΩ REL • 470 Ω V₁ 10 mV C₂ RE2 470 Ω 100 μF Figure 8 What is the mid-band AC output voltage? State any assumptions made.
