A 345 KV, 3-phase, 60 HZ transmission line is 130 Km long. The resistance is 0.036 2/ph/Km and the inductance is 0.8 mH/

Post by answerhappygod »

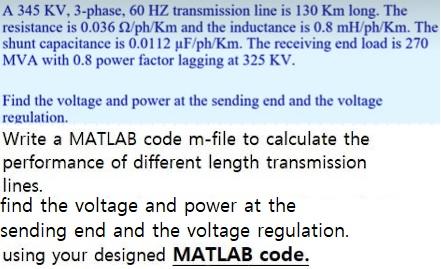

A 345 Kv 3 Phase 60 Hz Transmission Line Is 130 Km Long The Resistance Is 0 036 2 Ph Km And The Inductance Is 0 8 Mh 1
A 345 Kv 3 Phase 60 Hz Transmission Line Is 130 Km Long The Resistance Is 0 036 2 Ph Km And The Inductance Is 0 8 Mh 1 (29.6 KiB) Viewed 41 times
A 345 KV, 3-phase, 60 HZ transmission line is 130 Km long. The resistance is 0.036 2/ph/Km and the inductance is 0.8 mH/ph/Km. The shunt capacitance is 0.0112 µF/ph/Km. The receiving end load is 270 MVA with 0.8 power factor lagging at 325 KV. Find the voltage and power at the sending end and the voltage regulation. Write a MATLAB code m-file to calculate the performance of different length transmission lines. find the voltage and power at the sending end and the voltage regulation. using your designed MATLAB code.
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
