Section A Answer All The Questions In The Sheets Provided 1 State Two 2 Differences Between Nodal Analysis And Mesh 1 (75.54 KiB) Viewed 22 times
Please when you solving show me the steps one by one
.
thank you so much

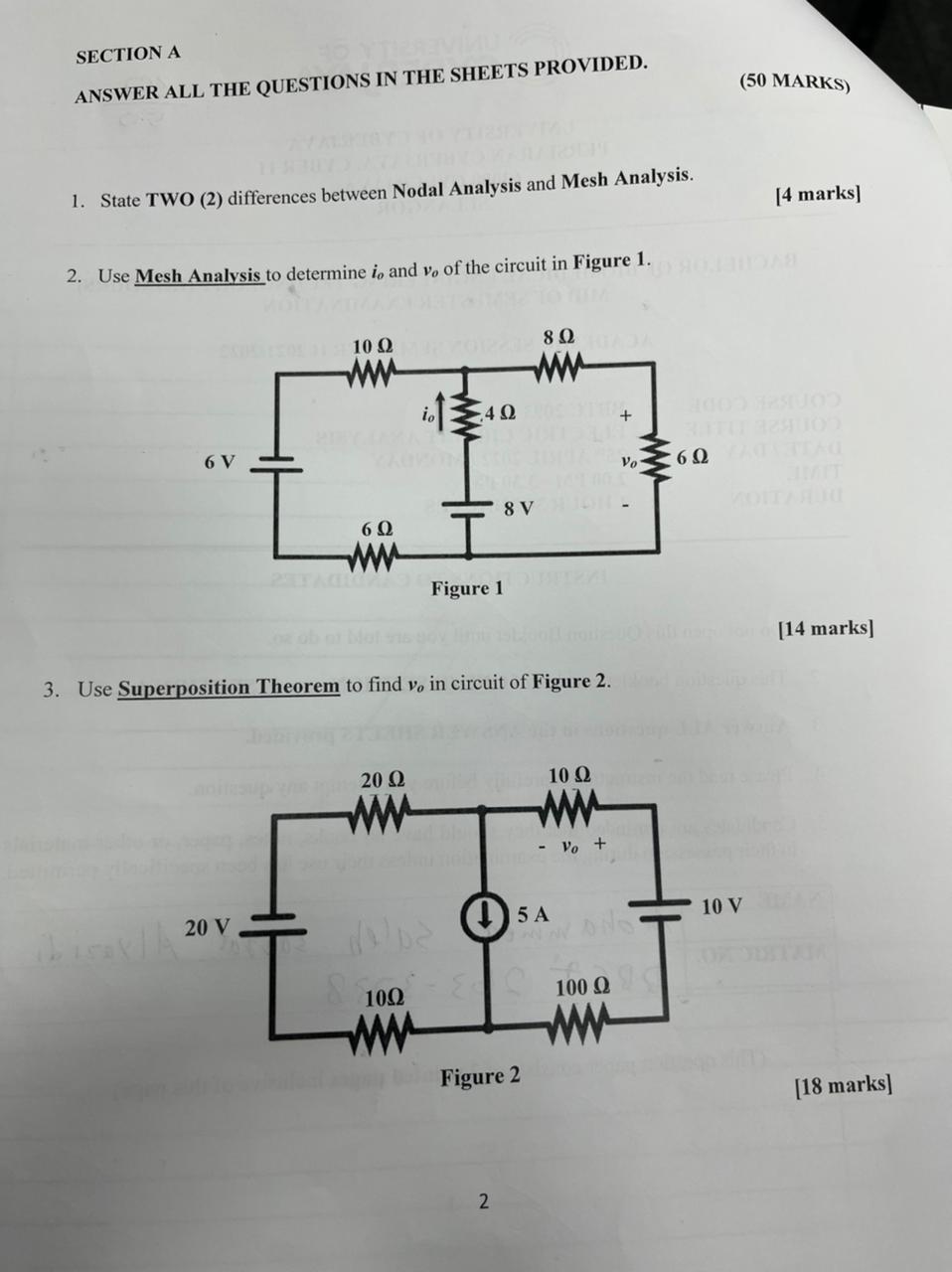

SECTION A ANSWER ALL THE QUESTIONS IN THE SHEETS PROVIDED. 1. State TWO (2) differences between Nodal Analysis and Mesh Analysis. 2. Use Mesh Analysis to determine io and vo of the circuit in Figure 1. 10 Ω 8 Ω ww 4QIDA + 6 V Vo 8 V Figure 1 3. Use Superposition Theorem to find vo in circuit of Figure 2. 20 Ω 10 Ω www www - Vo + 20 V 5 A INN NY AND e 100 Q 100 www www Pr io MAT 6Q Figure 2 2 (50 MARKS) [4 marks] 69 YATTAC 10 V [14 marks] [18 marks]
