2. For the circuit shown in Figure 2, the capacitor was initially uncharged. At time t=0s, the switch is closed on to po

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

2. For the circuit shown in Figure 2, the capacitor was initially uncharged. At time t=0s, the switch is closed on to po

Post by answerhappygod »

2 For The Circuit Shown In Figure 2 The Capacitor Was Initially Uncharged At Time T 0s The Switch Is Closed On To Po 1
2 For The Circuit Shown In Figure 2 The Capacitor Was Initially Uncharged At Time T 0s The Switch Is Closed On To Po 1 (29.31 KiB) Viewed 12 times

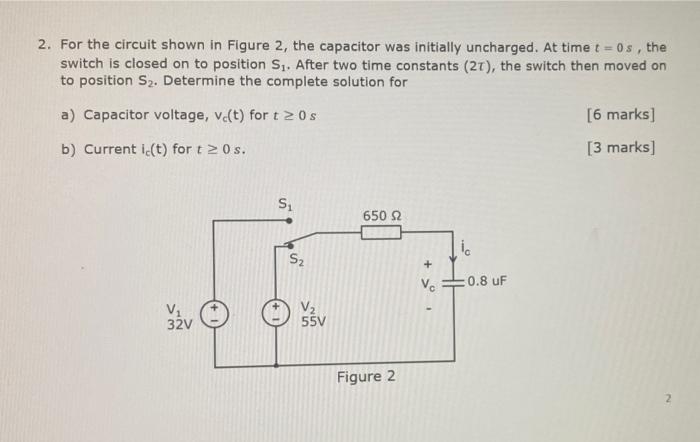

2. For the circuit shown in Figure 2, the capacitor was initially uncharged. At time t=0s, the switch is closed on to position S₁. After two time constants (27), the switch then moved on to position S₂. Determine the complete solution for a) Capacitor voltage, vc(t) for t 20s [6 marks] [3 marks] b) Current i(t) for t≥ 0 s. S₁ 650 Ω ic -0.8 uF V₁ 32V S₂ V₂ 55V Figure 2 + Vo 2
