4. An N-type wafer with a bulk concentration of 4.251 X 1015/cm³ was diffused with Indium with a surface concentration o
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
4. An N-type wafer with a bulk concentration of 4.251 X 1015/cm³ was diffused with Indium with a surface concentration o

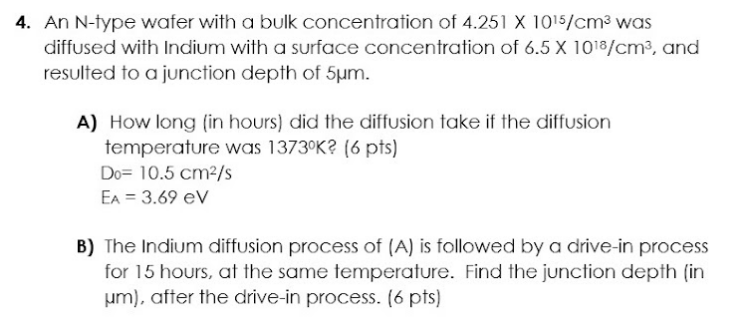

4. An N-type wafer with a bulk concentration of 4.251 X 1015/cm³ was diffused with Indium with a surface concentration of 6.5 X 1018/cm³, and resulted to a junction depth of 5μm. A) How long (in hours) did the diffusion take if the diffusion temperature was 1373°K? (6 pts) Do 10.5 cm²/s EA = 3.69 ev B) The Indium diffusion process of (A) is followed by a drive-in process for 15 hours, at the same temperature. Find the junction depth (in um), after the drive-in process. (6 pts)
