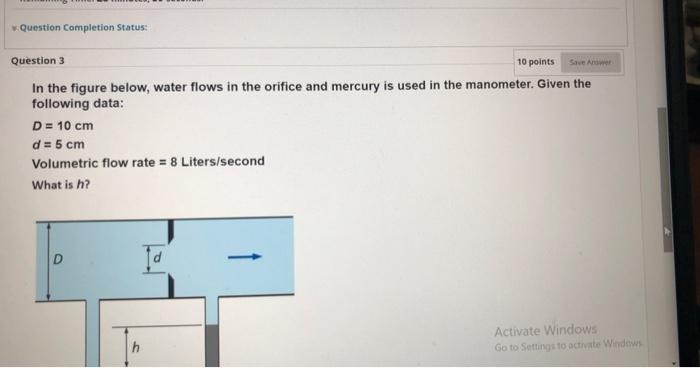

Question Completion Status: Question 3 10 points Save Answer In the figure below, water flows in the orifice and mercury is used in the manometer. Given the following data: D = 10 cm d = 5 cm Volumetric flow rate= 8 Liters/second What is h? Activate Windows Go to Settings to activate Windows

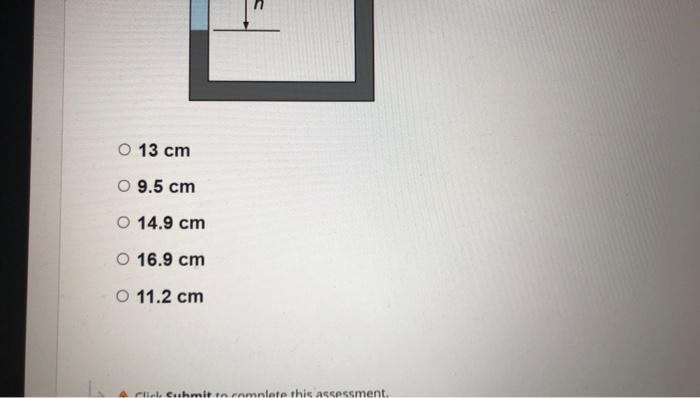

1 O 13 cm 9.5 cm O 14.9 cm O 16.9 cm O 11.2 cm Click Submit to complete this assessment.
