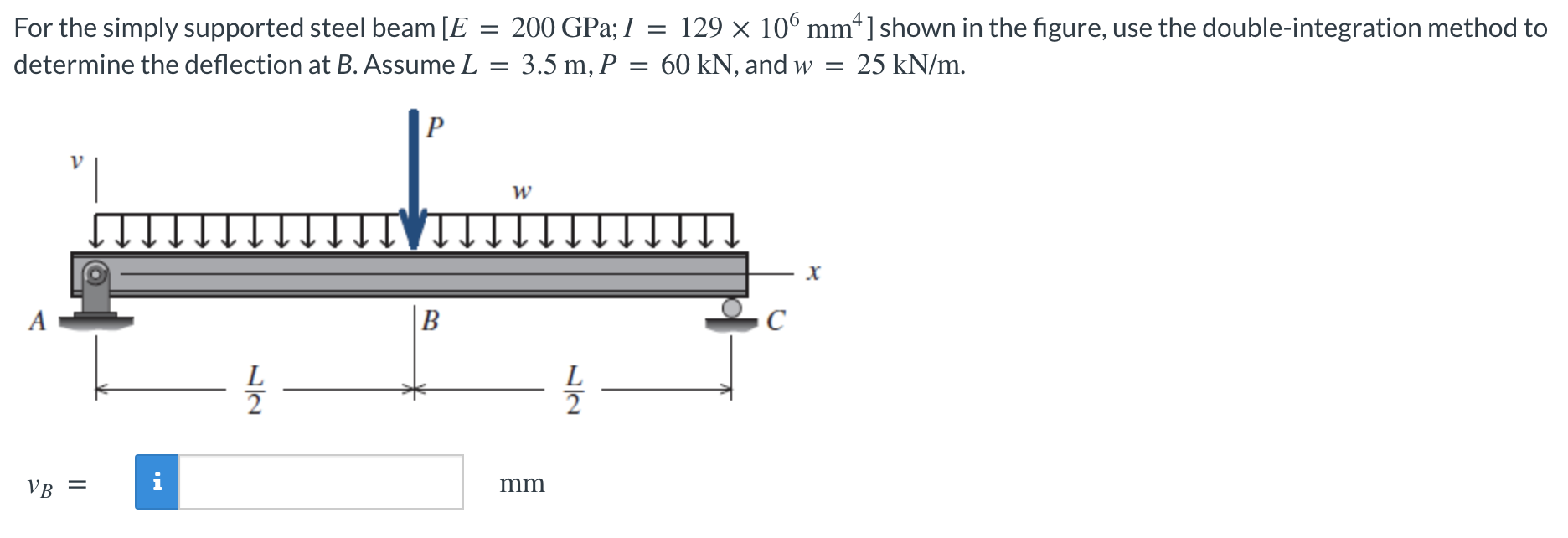

For the simply supported steel beam [E = 200 GPa; I = 129 × 106 mm4] shown in the figure, use the double-integration method to determine the deflection at B. Assume L = 3.5 m, P = 60 kN, and w = 25 kN/m. P W X B VB i || mm 72 C
For the cantilever steel beam [E = 190 GPa; l = 100 × 106 mm4], use the double-integration method to determine the deflection vå at B. Assume L = 3.1 m, Mo = 77 kN-m, and w = 18 kN/m. | W X B Mo A Answer: VB= i mm.
