The truss shown is constructed using 2L8x8x1/2 members. P = 120kips and L = 7ft. 2P P E D SATURAL 45° Determine the nomi

Post by answerhappygod »

The Truss Shown Is Constructed Using 2l8x8x1 2 Members P 120kips And L 7ft 2p P E D Satural 45 Determine The Nomi 1
The Truss Shown Is Constructed Using 2l8x8x1 2 Members P 120kips And L 7ft 2p P E D Satural 45 Determine The Nomi 1 (155.48 KiB) Viewed 17 times

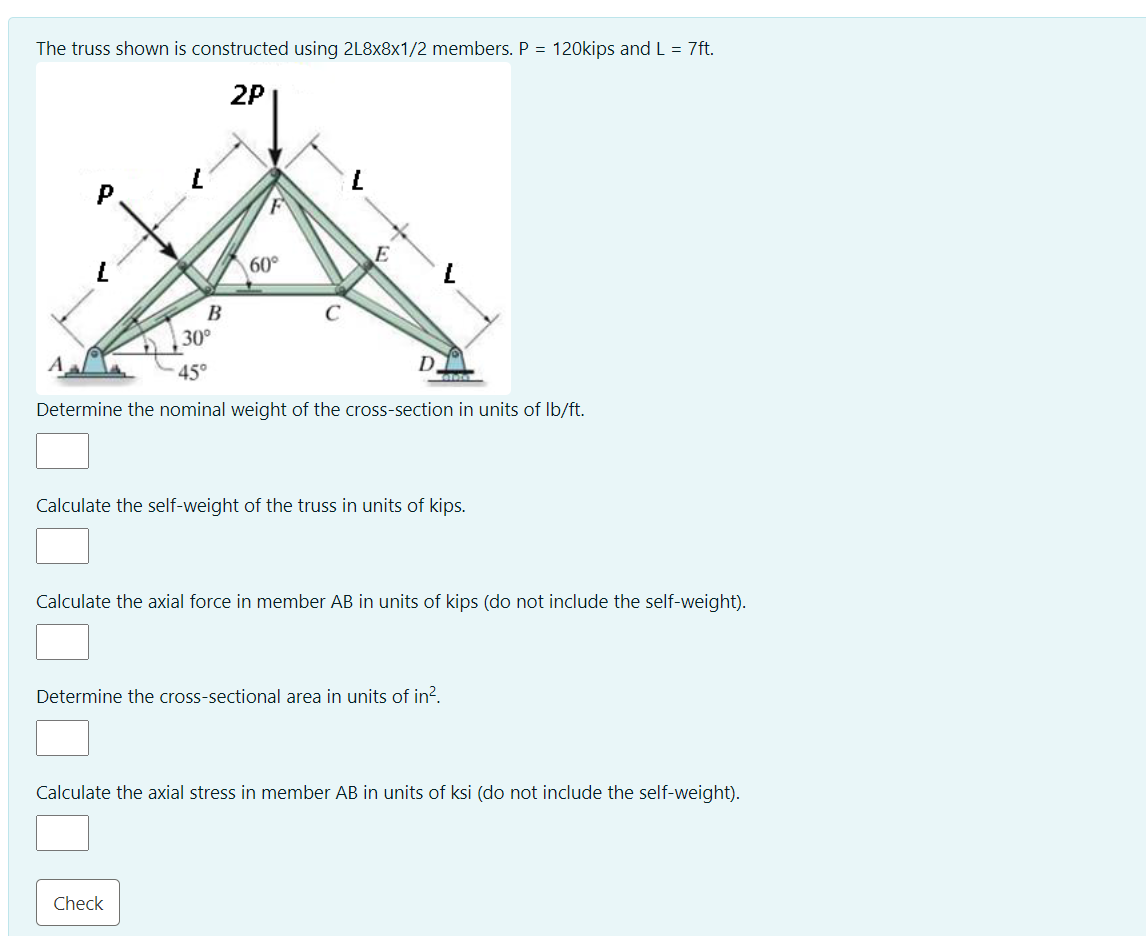

The truss shown is constructed using 2L8x8x1/2 members. P = 120kips and L = 7ft. 2P P E D SATURAL 45° Determine the nominal weight of the cross-section in units of lb/ft. Calculate the self-weight of the truss in units of kips. Calculate the axial force in member AB in units of kips (do not include the self-weight). Determine the cross-sectional area in units of in². Calculate the axial stress in member AB in units of ksi (do not include the self-weight). Check B 30° 60°
