1. R2 C2 W Vin C1 R1 Use the impedances and the time constants as, a) Write the transfer function of the band-pass filte

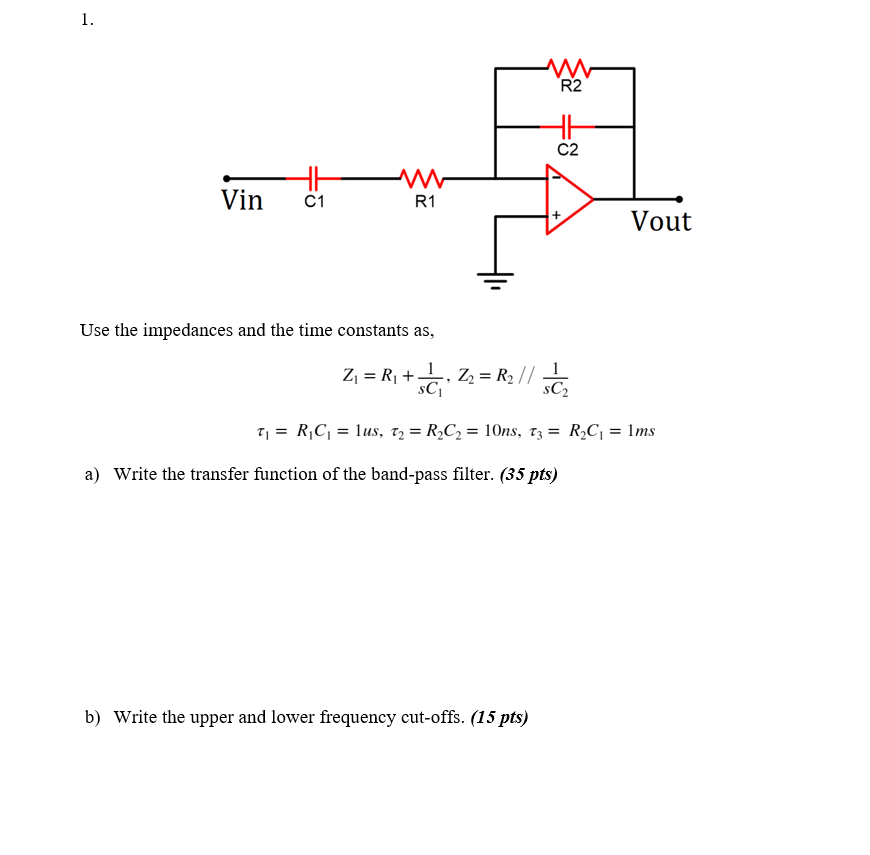

1. R2 C2 W Vin C1 R1 Use the impedances and the time constants as, a) Write the transfer function of the band-pass filter. (35 pts) b) Write the upper and lower frequency cut-offs. (15 pts) + Vout Z₁ = R₁ + = ₁₁ Z₂ = R₂ // C₂ . T₁ = R₁C₁ = 1us, t₂ = R₂C₂ = 10ns, t3 = R₂C₁ = 1ms
