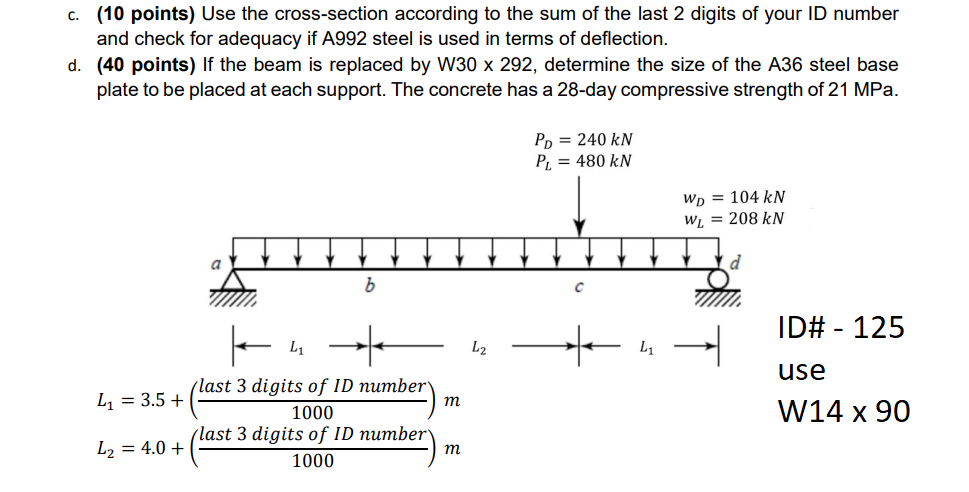

C. (10 points) Use the cross-section according to the sum of the last 2 digits of your ID number and check for adequacy

[answerhappygod]

C 10 Points Use The Cross Section According To The Sum Of The Last 2 Digits Of Your Id Number And Check For Adequacy 1 (83.27 KiB) Viewed 12 times

C. (10 points) Use the cross-section according to the sum of the last 2 digits of your ID number and check for adequacy if A992 steel is used in terms of deflection. d. (40 points) If the beam is replaced by W30 x 292, determine the size of the A36 steel base plate to be placed at each support. The concrete has a 28-day compressive strength of 21 MPa. PD = 240 KN PL = 480 KN WD = 104 kN W = 208 kN d b ID# - 125 L1 L2 + L1 use m (last 3 digits of ID number L1 = 3.5+ 1000 (last 3 digits of ID number L2 = 4.0 + 1000 W14 x 90 m
