The total head loss in the series/parallel pipe system shown below is 30 m. Determine the discharge in line 4. Diameters

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

The total head loss in the series/parallel pipe system shown below is 30 m. Determine the discharge in line 4. Diameters

Post by answerhappygod »

The Total Head Loss In The Series Parallel Pipe System Shown Below Is 30 M Determine The Discharge In Line 4 Diameters 1
The Total Head Loss In The Series Parallel Pipe System Shown Below Is 30 M Determine The Discharge In Line 4 Diameters 1 (43.54 KiB) Viewed 11 times

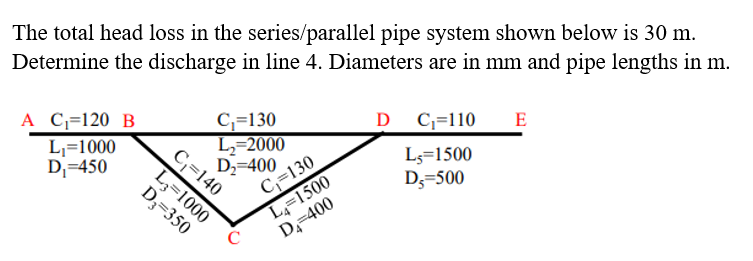

The total head loss in the series/parallel pipe system shown below is 30 m. Determine the discharge in line 4. Diameters are in mm and pipe lengths in m. E A C=120 B Ly=1000 D-450 C,=130 Ly=2000 D2-400 C,=140 Lz=1000 Dz=350 D C=110 Ls=1500 Dz=500 C=130 L4=1500 De=400 С
