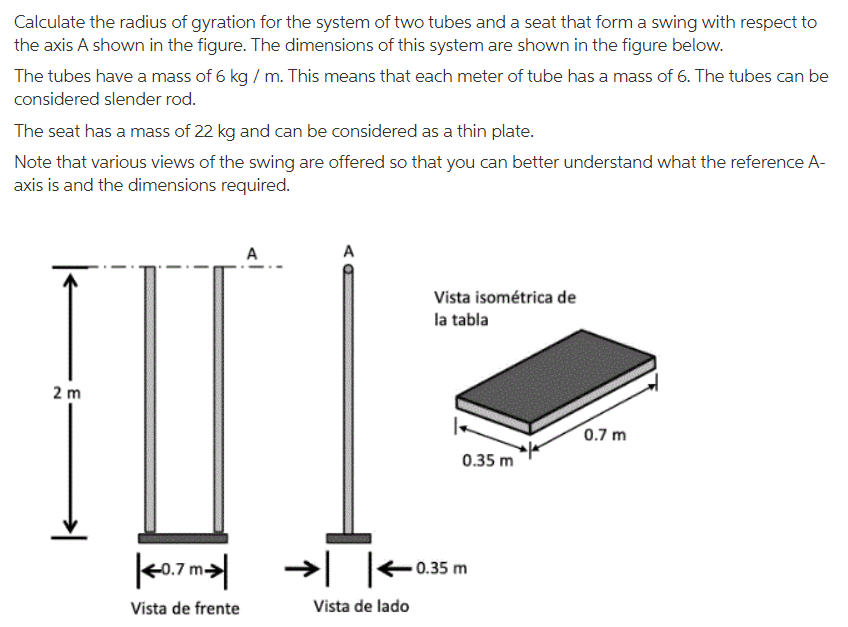

Calculate the radius of gyration for the system of two tubes and a seat that form a swing with respect to the axis A shown in the figure. The dimensions of this system are shown in the figure below. The tubes have a mass of 6 kg /m. This means that each meter of tube has a mass of 6. The tubes can be considered slender rod. The seat has a mass of 22 kg and can be considered as a thin plate. Note that various views of the swing are offered so that you can better understand what the reference A- axis is and the dimensions required. A A Vista isométrica de la tabla 2 m 0.7 m 0.35 m | |40.7m Vista de frente >| < -0.35 m Vista de lado

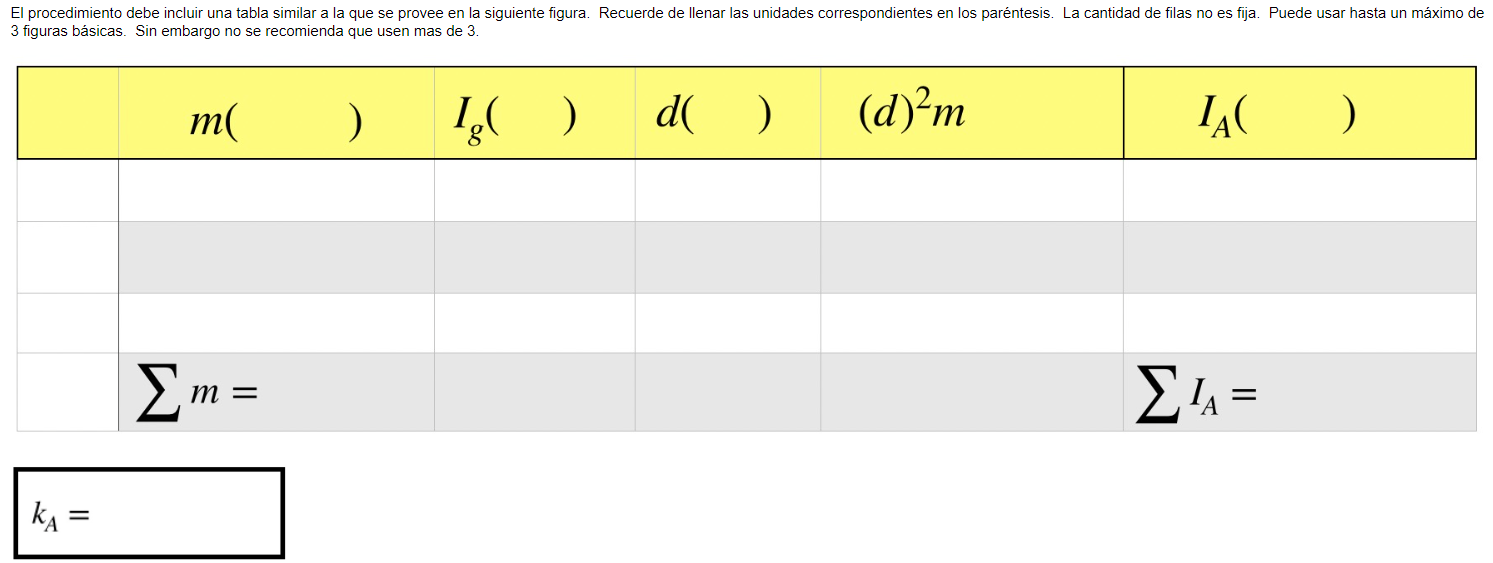

El procedimiento debe incluir una tabla similar a la que se provee en la siguiente figura. Recuerde de llenar las unidades correspondientes en los paréntesis. La cantidad de filas no es fija. Puede usar hasta un máximo de 3 figuras básicas. Sin embargo no se recomienda que usen mas de 3. ma ) 14 ) , d( ) ( ). (d)?m IAC ) Ση η = ΣΙ = ka =
